18 AWG Reel Smart Covered Single Wire Ferrule on Reel FSD76-8-K (Pack of 1000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification:
| Product Type | Covered Single Wire Ferrule on Reel |
| Standards Met | DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Sub Brand | Reel Smart |
| Copper Conductor Size | #18 |
| Base Material | Copper |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Finish/Coating | Tin-Plated |
| Color Code | Gray |
| Overall Length (mm) | 14.5 |
| For Use With | CP-881, APM-MRSP1516JMD |
| Part No. | FSD76-8-K |
Description:

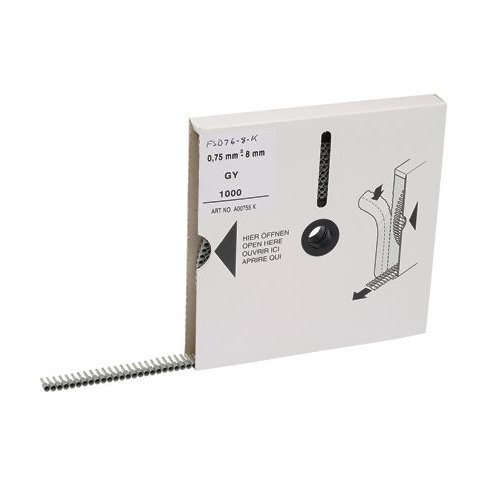

Insulated ferrules, single wire gray DIN end sleeve on mini-reel, 18 AWG (0.75mm²), 0.31 (8.0mm) pin length.
Features :
Polypropylene insulation housing available in DIN standard colors in reels to 500 to 3000 Designed specifically for use with the Ferrule Applicator (SCA-712022002) for high volume applications Continuously molded design provides consistent placement of ferrules in applicator to ensure fast, reliable terminations
