18 AWG Plenum RG-6 Coax Quad Shield Copper Clad Steel Cable White 78-14C-91 1000 ft Plywood Reel
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
RG-6 Quad Shield coaxial cables are specifically engineered to support technologies including extended bandwidth satellite service, high definition TV signals, CATV, and two-way cable modems. Superior Essex ensures the cable diameter meets the stringent requirements of top connector manufacturers.
Also Known as:
18 AWG Cable, Coax Cable, Coaxial Cable, 18 AWG Coax Cable, RG6 Coax Cable, Coax RG6 Cable, Coax RG-6 Cable, Copper Clad Cable, Plenum Cable.
Performance Compliance:
• UL 13
• UL 444
• CSA C22.2 No. 214-08
• UL 1685
• NFPA 262
• RoHS-compliant/RoHS 2-compliant
Applications:
• HDTV and CATV
• Two-way cable modems
• Extended bandwidth satellite service
Benefits:
• “Future-proofing” the installation. Supports extended bandwidth satellite service and
high-definition TV signals
• Exhibits better transmission characteristics
• Helps differentiate incoming service versus internal cabling infrastructure.
Features:
• RG-6, Quad Shield Coaxial cable with bandwidth that exceeds 3 GHz
• Tight foamed polyethylene (CM and CMR) or fluoropolymer (CMP) insulating skin bonds around center conductor.
Specifications:
| Conductor Size | 18 AWG |
| Conductor | Copper clad steel |
| Nominal Diameter |
Overall: 0.30in / 7.5mm Dielectric: 0.18in / 4.6mm Shield: 0.19in / 4.8mm |
| Inner Braid | 34 AWG aluminum (60%) |
| Inner Shield | Aluminum/polyester/aluminum |
| Outer Braid | 34 AWG aluminum (40%) |
| Outer Shield | Aluminum/polyester/aluminum |
| Insulation | FEP |
| Jacket | PVC (polyvinyl chloride) |
| Flame Rating | Plenum |
| Nominal Impedance Ohms | 75 |
| Nominal Velocity of Propagation % | 80 |
| Jacket Color | White |
| Package | 1,000' Plywood Reel |
| Part Number | 78-14C-91 |

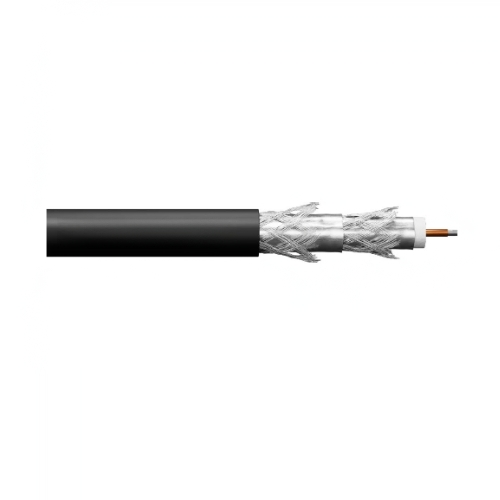

*Image is an illustration purpose only, may not reflect the exact color sold.
