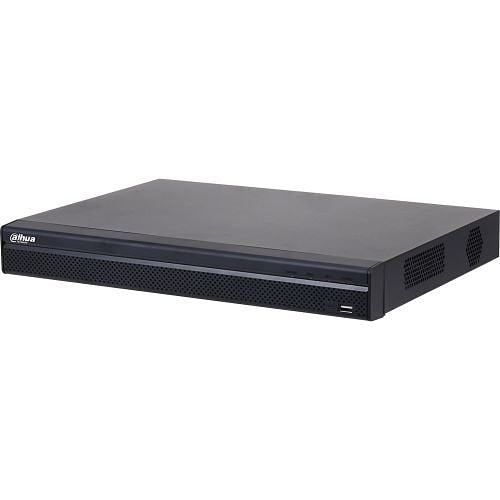

16-Channel 4K 1U 4T PoE NVR with Smart H.265 HDD Not Included N42C3P4
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Main Processor | Industrial-grade Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16 Channels |
| Audio | Input: One (1) Channel, RCA Output: One (1) Channel, RCA |
| Interface | One (1) HDMI One (1) VGA |
| Native Output Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Audio Compression | PCM, G.711A, G.711Mu, G.726 |
| Ethernet | One (1) RJ-45 Port (10/100/1000 Mbps), Self-adaptive |
| PoE | 16 Ports (IEEE802.3af/at) |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS); P2P; Auto register |
| Maximum User Access | 128 |
| Mobile Operating System | IOS, Android |
| Operating Conditions | –10° C to +55° C (+14° F to +131° F), 10% to 93% RH |
| Storage Conditions | 0° C to +40° C (32° F to 104° F), 30% to 85% RH |
| Dimensions (W x L x H) | 375.0 mm x 327.90 mm x 53.0 mm (14.76 in. x 12.91 in. x 2.09 in.) |
16-Channel 4K 1U 4T PoE NVR with Smart H.265 HDD Not Included N42C3P4
DESCRIPTION :
Dahua’s Lite Series network video recorders offer excellent performance and high recording quality for network video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and back up storage.
FEATURES :
⦿ Smart H.265+ and Smart H.264+ Dual Codec
⦿ Maximum 160 Mbps Incoming Bandwidth
⦿ Up to 8 MP Resolution for Preview and Playback
⦿ Simultaneous HDMI and VGA Video Output
⦿ Supports Remote Configuration and Management of Network Cameras
⦿ Supports P2P Remote Surveillance and DMSS Mobile App
⦿ Records Analytics+ Data from Edge Cameras
⦿ 16 PoE/PoE+ Ports
Download PDF Spec Sheet
