15 Amp 4-in-1 NEMA 5-15R Receptacle Outlet 1254-IG

Product Information

Specification

15 Amp 4-in-1 NEMA 5-15R Receptacle Outlet 1254-IG

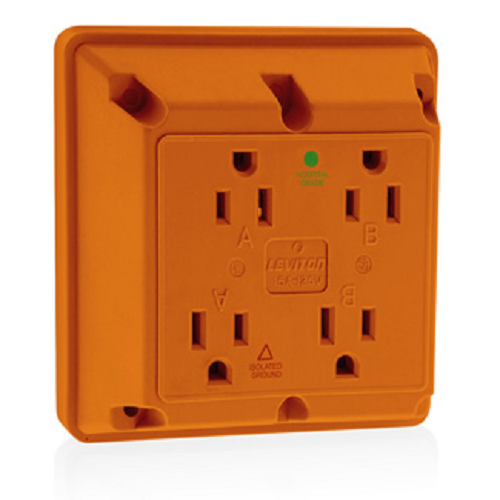

4-in-1 Isolated Ground Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Orange

Also Known As:

Receptacles, Electrical Receptacles, Outlet, Sockets, 4-in-1 Receptacles

About:

• Interlocking Thermoplastic Nylon Cover and Body
• Nickel- Plated Brass Strap with Integral Ground Contacts
• Back and Side Wiring Options Available
• Permanent "Green Dot" Marked on Face
• Extra Heavy-Duty, T-type triple-wipe bronze contacts for maximum performance

Common Applications:

Turn Off Power: Before starting any electrical work, turn off the power to the circuit at the electrical panel to ensure safety.

Attach the Receptacle to the Junction Box: Carefully fold the wires into the junction box and attach the receptacle to the box, following the manufacturer's instructions.

Turn On Power: After completing the wiring and ensuring all connections are secure, turn the power back on at the electrical panel.

Standards and Certifications:

ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-1 WD-6
NOM: 057
UL498: File E13399
UL498HG: File E13399

Description:

The Leviton 1254-IG Electrical Duplex Receptacle is a versatile and dependable solution for your electrical power needs. Designed to blend seamlessly into any home or workspace, this receptacle is engineered with precision and built to last, ensuring long-term performance and safety.

Specification:

Amperage	15 A
Dielectric Voltage	Withstands 2000V per UL498
Voltage	125 VAC
Wire	3
Flammability	Rated V-2 per UL 94
Body Material	Nylon
Strap Material	Galvanized Steel
Color	Orange
Device Type	Quadruplex Receptacle Outlet
Function	4-in-1
NEMA	5-15R
Part No.	1254-IG

Features:

• Surge Protective and Isolated Ground versions available
•Accommodates up to 4 Fed Spec size straight or angled plugs
• Terminal Wiring Screws fit Inside a Standard Single Gang, 4” Octagon, and 4” Square Wall Box
• Adapter Plate (Cat. No. 4254) Required for 2-Gang and 4 11/16” Square Wall Box Installations
•Termination anchor holes for easy conductor wiring
• Easy-to-read voltage and amperage rating molded onto face
• Impact and chemical resistant nylon cover and base
