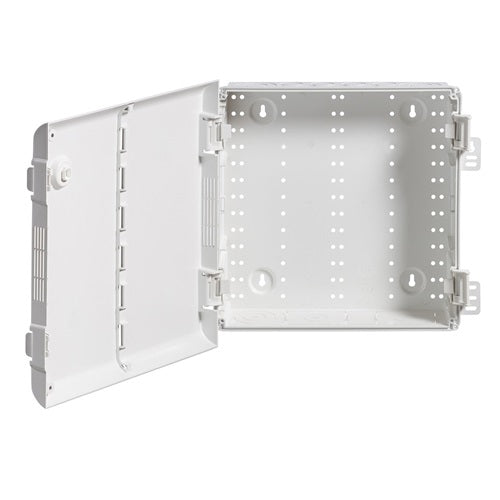

14 Inch Wireless Structured Media Enclosure with Vented Hinged Door 49605-14P

Product Information

Specification

• 14-inch height for added equipment space
• Allows for installation of two single-gang J-boxes or a single full-size power module
• Not intended for installation in a fire-rated wall

About:

Structured Media Centers provide an excellent termination and mounting location for in-home structured wiring systems and components. The 14-Inch Wireless Structured Media Center allows the full reach of a wireless network, as opposed to standard metal enclosures that can limit the range of a wireless signal.

Common Applications:

• Small Home or Apartment Networking: T It provides a centralized location for a home network system, including router, switch, and modem in smaller living spaces where a larger enclosure is not necessary.

• Remote Workstations: For businesses with remote network stations or kiosks that require a secure and organized network setup in a limited space.

• Media Control: In small homes or apartments, it can be used to manage connections related to audio/video distribution systems, albeit on a much smaller scale than larger homes.

• Expansion for Existing Networks: Acts as an additional networking point or sub-hub for larger homes that need more distribution points for consistent wireless coverage.

• Telecommunication Distribution: Manages and distributes telephone lines or VoIP connections in a multi-dwelling unit or small business setting.

Features:

•  Uses ABS polymer construction to permit the full reach of wireless signals by diminishing the effect of interference
• 180-degree hinged cover allows for quick and easy access to network equipment • Makes servicing and expansion easy with seven 1-inch and three 2-inch knockouts and additional 1-inch nested knockouts
• Compatible with Leviton Connected Home patch panels, voice, data, video, and audio distribution modules
• Assures safety with UL compliant ABS flame-retardant polymer
• Vented door assists in airflow for cooling active gear
• Ratcheting Hinge & Latch System creates fast, tool-free door installations and helps accommodate for wall imperfections
• Existing metal enclosure can be retrofitted for RF transparency by using Trim Ring Accessory (49605-14T) and door (49605-14S)
• Optional door locks available

Standards:

• cULus Listed: UL Standard 2416 - Audio/Video, information and communication technology equipment cabinet, enclosure and rack systems
• UL Standard 985 - Household Fire-Warning System Units
• UL Standard 1023 - Household Burglar-Alarm System Units
• RoHS

Specification:

• Materials : ABS Polymer
• Product Name:14" Wireless Structured Media Enclosure with Vented Hinged Door,Plastic
• Color: White

Construction:

 The enclosure shall be molded from UL-rated ABS flame-retardant polymer. The enclosure shall be suitable for new construction or retrofit installations and shall allow for flush mounting on standard 16" on-center studs with four wood screws (not provided) or for surface mounting on a variety of surfaces capable of supporting the enclosure and contents.
