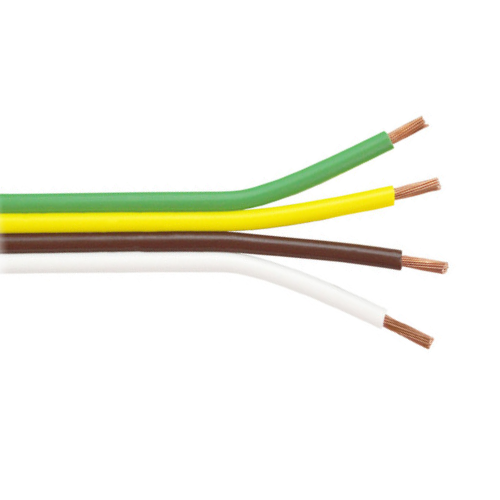

14 AWG 4 Conductor Zip Cord Wire
Also Known As:
Zip Cord Wire, DC circuits Wire, Trailer lights Wire, Low voltage lights, quick installations Wire
About:
14 AWG Zip cord with multiple conductors is used in a variety of jobs and industries. Commonly, it is used for low voltage lights, trailer lights or DC circuits. How is it different from other bonded wire Well, when it is being manufactured, three or four strands of wire are extruded together side by side. Each of these wires is color-coded for easy identification. 14 AWG Zip cord with multiple conductors is designed to stay together during operating conditions. If needed, the wires can be easily separated for termination of the ends. What material is this wire constructed from Well, 14 AWG zip cord is made from annealed bare copper primary wire (Type II). This wire is chosen for is conductivity. The insulation on the wire has been color coded for easy identification. This insulation is designed to be flexible to make the installation process easier.
Standards:
• Temperature Range: -20 °C to 105 °C
• Voltage Rating: 60 V
Applications:
• Low voltage lights
• Trailer lights
• DC circuits
Features:
• Annealed stranded bare copper (Type II)
• Color coded parallel bonded wire conductors
Specifications:
• AWG: 14
• No. of Conductors: 4
• Conductor Stranding: 4 Conductor = 19/29
• Conductor Colors: 4 Conductor = BR/YL/GR/WH
• Part Number: WB14-4
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
