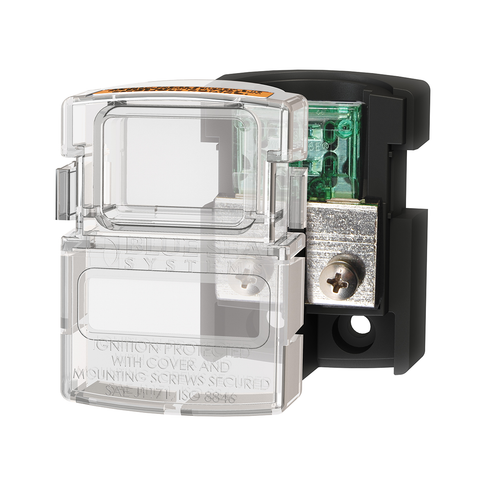

14-4 AWG Maxi Fuse Block

Product Information

Specification

14-4 AWG Maxi Fuse Block

Also Known As:

Maxi Fuse Block, Single Circuit Fuse, 32V DC Maximum Voltage

About:

Maxi fuse blocks are the ideal way to handle a single circuit fuse block. The block itself can handle up to 80 amps and comes with a durable high quality translucent cover to protect the operator and the fuse block. One important consideration is that this fuse block accepts wires from 14 AWG to 4 AWG from the sides or the bottom. This way you can utilize the Maxi fuse block in the way best suited for your specific needs. Choosing the right fuse block for your applications is not always an easy task.

Construction:

• Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
• Cover breakouts allow wires from sides or bottom
• Terminal screws compress fuse blades within blocks for low resistance connections
Ignition Protected
• Label recess accepts large format label
• Fuses sold separately

Specifications:

• Maximum Voltage : 32V DC
• Maximum Amperage : 80 Amp
• Screw Terminal Torque : 25 in-lb (2.82 Nm)
• Wire Size : 14 - 4 AWG
• Part No : EFH-5006100
