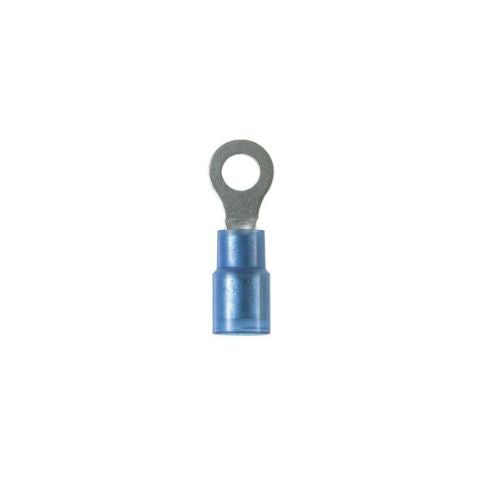

14-18 AWG Ring Terminal Blue PN14-10RX-C (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• Supports 14-18 AWG wires, suitable for light to medium-duty electrical applications
• Fits #10 stud size, providing a stable and precise connection to bolts or screws
• Nylon insulation offers flexibility, durability, and protection against vibration, heat, and environmental factors
• Ensures a secure and easy installation with a flared barrel for smooth wire insertion
Also Known As:
Ring Terminal, Loose Piece Ring Terminal, #10 Stud Size Ring Connector, Terminal Ring.
Specification:
| Product Type | Ring Terminal |
| Stud Size | #10 |
| Wire Rang | 14-18 AWG |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Insulation Material | Nylon |
| Barrel Type | Grip Sleeve |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Color | Blue |
| UPC | 074983800469 |
Features:
• Expanded wire entry designed to accommodate wire with a larger insulation thickness
• Ring tongue design assures a secure connection in high vibration applications
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
