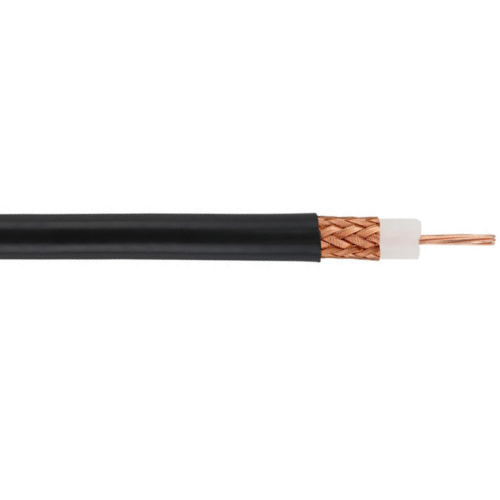

13 AWG 7x21 Bare Copper RG8U1154 Coaxial Cable
Also Known As:
Bare Copper Cable, Coaxial Cable, RG8U1154 Cable, Solid Polyethylene Cable, Black PVC, Bare Copper Braid
About:
Coaxial cable RG8U 1154 is frequently used in the transmission of communications signals. More specifically, audio, video or network signals. You will most likely recognize these cables if you have looked at the back side of your cable box or modem. Most people don't even know that these cables are actually called coaxial. Many people call them coax, which is the shorthand. So, what does coax, or coaxial mean Well, the term coaxial means that the cable has two concentric conductors that are separated by an insulating material. The inner conductor is encased in a cylindrical material that insulates it. This insulating material is then surrounded by a conducting shield. In certain cases, there may even be another insulating layer after the shield. Most often, the inner conductor carries the signal carrying voltage while the shield is kept at ground potential. One advantage of a design such as this is that the magnetic and electric fields are bound within the insulating material. This reduces leakage outside the shield. So what is RG8U 1154 Well, this style of coax is most commonly used for single antenna installations. It is also used for jumpers when pieces of equipment that are close together need to be connected. This cable possesses a stranded center which distinguishes it from many other types of coax. It will handle high wattage and offers multiple benefits such as higher propagation velocity. Generally, this cable is more than what the average user will require. However, if you are looking to have a strong setup, then this cable is for you. How is RG8U 1154 different from RG8XW There are actually many reasons that these cables are different, but the most important reason is the conductor material. Rather than tinned copper, RG8U 1154 carries bare copper. If you have any questions about RG8.
Applications:
• RF Connections
• Two-way communications
• CB radio
• WLAN
• Broadcast
• RG58 used for interconnecting electronic equipment
• RG8X used for VHF<50ft
• RG8U used for VHF>50ft
Features:
• Used for two-way communications, RF and microwave transmission and instrument control
Specifications:
• Conductor AWG: 13 (7x21) Bare Copper
• Insulation Material: Solid Polyethylene
• Shield Coverage: 95% Bare Copper Braid 1.2Ω/M
• Jacket Material/Nom. O.D.: Black PVC 0.405
• Nom. Cap pF/ft: 29.5
• Nom. Cap pF/m: 96.76
• Velocity of Prop. (% pF/m): 66
• Nominal Impedance (Ohms): 52
• Part Number: MRG8U1154
