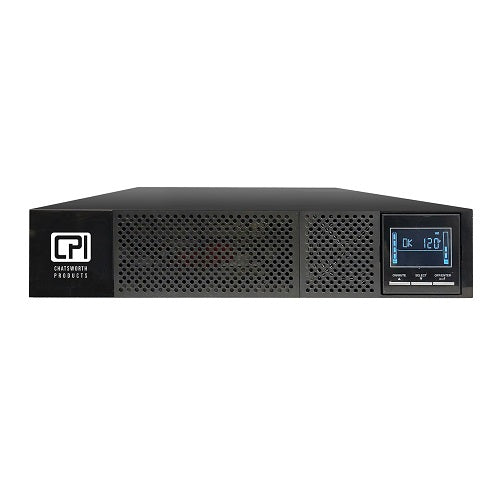

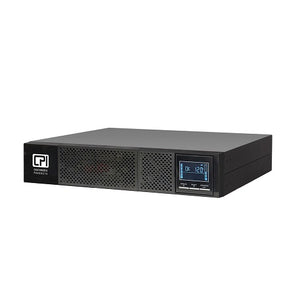

120V Lithium Ion Online UPS LD3000A

Product Information

Specification

Capacity VA	3000VA
Capacity Watts	2700W
External Battery Option	N
Input Plug	L5-30P
Nominal Input Voltage	120V
Output Receptacles	(1) L5-30R + (6) 5-20R
Runtime at 100 Percent Load	11 minutes
Runtime at 50 Percent Load	23 minutes
Part No.	LD3000A

120V Lithium Ion Online UPS LD3000A

Description:

Lithium Ion Uninterruptible Power Supplies (UPS) provide more than twice the life, higher temperature tolerance, longer runtime, and faster recharge when compared to typical lead-acid battery solutions. Double-Conversion Online technology makes this UPS ideal for protection of network, server, edge, light industrial and distributed IT applications.

• 6-Year Full Warranty—industry-leading coverage for both Lithium Ion batteries and UPS electronics.
• Double-Conversion Online—Provides the most robust power protection against blackouts, brownouts, voltage surges, frequency variation and harmonic distortion
• Longer Runtimes—Internal runtimes up to 5 times longer than lead-acid UPS Longer Lifespan—Up to 2000 full discharge cycles. Up to 10 times more than lead-acid UPS
• Quick Recharge—90 minutes to 90% full charge with powerful 8 Amp charger
• Lower Weight—25% less heavy than typical lead-acid UPS
• Battery Management System—insures cell voltage balancing, current sharing and protection for over-charge and over-discharge
• Maintenance Bypass—optional bypass distribution module enables the UPS to be replaced or serviced without power interruption

Features:

• Available models: 1500VA/1350W, 2000VA/1800W, 3000VA/2700W
• Tower, two-post, and four-post rack mounting configurations
• UL, cUL, RoHS, FCC A, UN38.3 for battery transportation
• Hot swappable internal lithium ion battery pack
