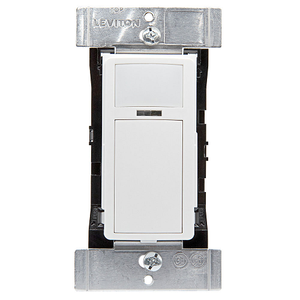

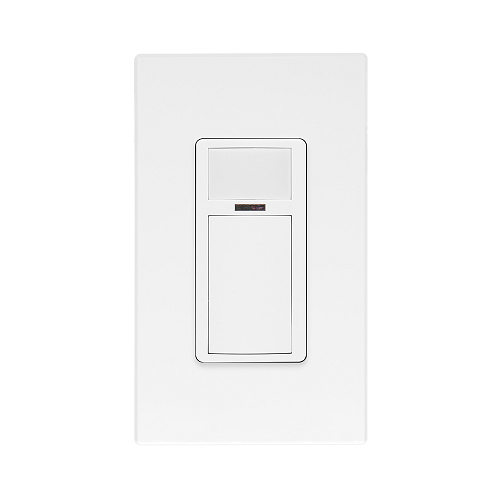

120-277V Occupancy Smart Sensor White ODS15-IDW

Product Information

Specification

About:

• Occupancy sensors are widely used to automatically control lighting systems by turning lights on when occupancy is detected and off when the space is unoccupied, contributing to energy savings.
• Occupancy sensors are employed in security systems to detect movement within restricted or sensitive areas, triggering alarms or surveillance systems.
• The Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistent lens.
• When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON.
• The lights will remain ON as long as an occupant is moving through the sensor zones.
• The ODS15-Ixx ’s vacancy mode features a Manual-ON/Auto-OFF for installations where manual-ON switching is required for energy code applications.

Also known as:

Motion Sensor, Motion Detector, Presence Detector, PIR Sensor, Occupancy Sensor, Smart Sensor, Vacancy Sensor, Occupancy Sensor, Occupancy Smart Sensor.

Specification:

• Product Type: Smart Sensor
• Sensor Type: Occupancy / Vacancy
• Frequency: 50/60Hz
• Switch Type: Single-Pole
• Voltage: 120-277V
• UPC Code: 078477010228

Features:

• Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and manual control requirements
• Fits in a standard wallbox and gangable with other units
• Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
• One relay module for single-level switching
• 180° field-of-view provides approximately 1,100 square feet of coverage
• Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
• Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto ON/Auto-OFF or Manual-ON/Auto-OFF
• Adjust the sensitivity of the sensor to increase or decrease coverage area
• Adjust timeouts
• Activate the nightlight and select nightlight colors
• Add daylighting hold-off and select target daylighting levels
