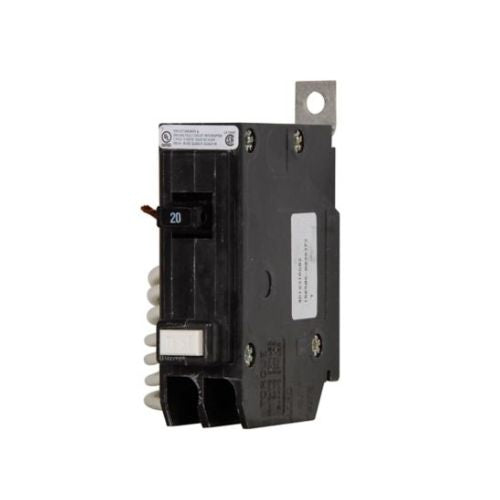

120/240V Single-Pole 20A Bolt-On QB Circuit Breaker QBH1020GF
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
A circuit breaker is an electrical safety device designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or a short circuit. Its basic function is to interrupt current flow after a fault is detected.
Also Known As :
Circuit Breaker, Electrical Breaker, Breaker, Safety Switch, Disconnect Switch, Overcurrent Breaker
Specification :
| Circuit breaker type | QB |
| Number of poles | Single-pole |
| Mounting Method | Bolt-on |
| Type |
Ground fault circuit breaker
|
| Wire size |
#14-4 AWG
|
| Amperage Rating |
20 A
|
| Interrupt rating |
22 kAIC
|
| Trip Type | Non-Interchangeable |
| Trip rating | 5 mA trip sensitivity |
| Voltage rating |
120/240 V
|
| Length/Depth | 3.5 in |
| Height |
1.3 in
|
| Width |
6 in
|
| Product Type |
Circuit Breaker
|
| Compliances |
Contact Manufacturer
|
| Certifications |
UL 489
|
| Special features |
Bolt-on mounting
|
Features :
• Circuit breakers are used in residential, commercial, and industrial environments. They range from small devices that protect household appliances to large switchgear designed to protect high voltage circuits feeding an entire city.
• Breakers are rated for different voltages, currents, and interrupting capacities. Choosing the correct rating is crucial for the safety and efficiency of the electrical system they protect.
• Regular maintenance of circuit breakers is essential to ensure they operate efficiently and safely. This can include visual inspections, mechanical tests, and electrical tests.
Download PDF Spec Sheet
