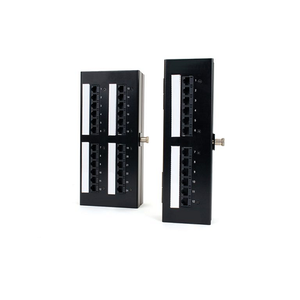

12 Port Wall Mount Patch Panel 568A/B Wired PP1288/110A6

Product Information

Specification

DESCRIPTION:

When Category 6 was introduced to the market, brought a product offering that was designed to exceed industry expectations and surpass the governing standards. We created Category 6 connectivity components that offered patented technology and guaranteed bandwidth performance. Category 6 patch panels were no exception. Developed to offer true performance, our Category 6 patch panels are truly standards compliant.

APPLICATIONS:

• 2.5G/5GBASE-T Gigabit Ethernet
• 1000BASE-T Gigabit Ethernet
• 100BASE-TX Fast Ethernet
• 10BASE-T Ethernet
• 155/622 Mbps ATM
• Broadband Video
• Analog Voice/VOiP
• PoE, PoE+, and PoE++
• All other applications developed for operation over Category 6 cabling

FEATURES:

• Category 6 component compliant
• 610 punch-down block
• Power-safe modular jack contacts
• OCC patented PCB technology
• Backward compatible; Cat 3 & 5e
• Mounting flexibility
• Removable cable strain-relief bar
• Patch panels are available in both flat and angled configurations
• All-steel panel ensures panel rigidity and reliable terminations
• Universal T568A/B wiring for easy installation
• 6-port component modules
• Write-on label fields
• Rigid box-section panel construction
• Supports all IEEE Power over Ethernet (PoE) standards
• Insulation resistance: 500MΩ minimum
• Dielectric withstand: 1000 VAC RMS or 1414 VDC
• DC current rating: 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C ambient
