Product Information
Specification
About:

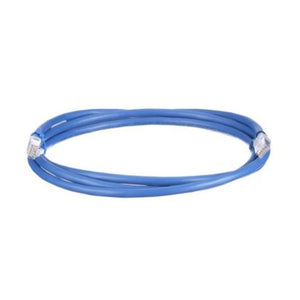

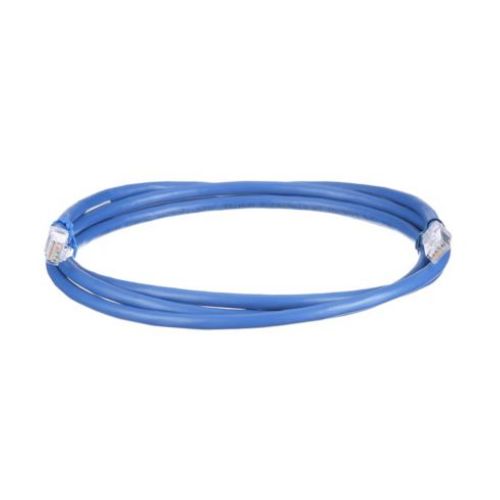

• The TX6A 10Gig Cat 6A UTP Patch Cord is a 12-Meter, 0.250-inch (6.4mm) diameter, Blue cord constructed of 24 AWG unshielded twisted pair (UTP) solid CM cable.
• It features high-performance modular plugs designed to limit alien crosstalk, ensuring reliable 10 Gb/s transmission.
• The cord includes a tangle-free latch to prevent snags and enable quick release, streamlining moves, adds, and changes.
• Additionally, the cord is RapidID-enabled, featuring pre-installed barcodes for easy port mapping through RapidID software, optimizing installation and management
Also Known As:
Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable, UTP Copper Patch Cord.
Specification:
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Plastic |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 12 |
| Nominal Cable Outside Diameter (mm) | 6.4 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Color | Blue |
| Flammability Rating | CM |
| Plug Type | Meets IEC 60603-114 |
| UPC | 613056770997 |
Features:
• 100% performance tested confidence that each patch cord delivers specified performance
• Flexible cable design improved cable management in high density applications enabling easier installations
• Center de-embedded plug performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
• Integral pair manager optimizes performance, consistency and reliability by reducing untwist at plug
• Patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
• Slender strain relief boot provides easy access in high-density applications
Download PDF Spec Sheet
