12 Fiber OS2 Singlemode OFNR EnduraLite Loose Tube Optical Fiber Cable Black F360-012U13-E991

Product Information

Specification

About:

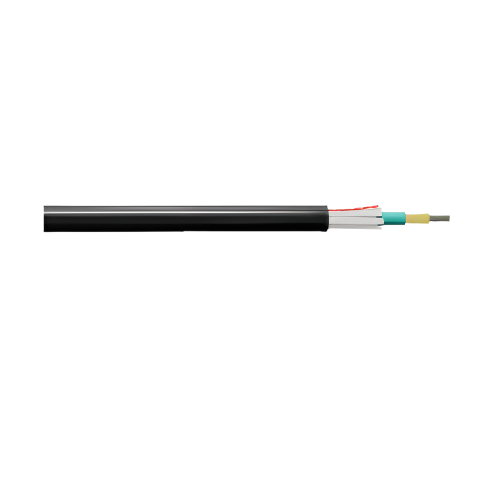

EnduraLite Dry Block, Sunlight Resistant Indoor/Outdoor Loose Tube riser and plenum rated cable lines offer the system designer the smallest form factor in a premises indoor/outdoor optical fiber cable. The cables can be installed in open spaces, trays, conduits, inner-ducts, trenches, steam tunnels and building riser or plenum locations. In the single unit design, a 3 mm central tube contains 2 to 12, 250 μm fibers and water-blocking aramid yarns. In the multi-unit design, the waterblocked 3mm subunits are stranded around a central strength element.

2 – 12 Fiber Single Unit: 3 mm central subunit surrounded by additional water-blocking glass yarns and an outer jacket
Subunit: 3mm subunits containing 2 to 12, 250 μm fibers and water blocking aramid yarns surrounded by a flame retardant PVC jacket
Subunit Strength Elements: Water-blocking aramid yarns
Subunit Jacket: Flame retardant (FR) PVC
Strength Elements: Water-blocking glass yarns and/or glass reinforced plastic rod

Also Known as:

12 Fiber SM Cable, Singlemode Fiber Cable, Indoor/Outdoor Cable, Teraflex G.657.A1, Singlemode Indoor Cable, Singlemode Riser Cable, Non-Plenum Cable, Premises Cable Riser.

Benefits:

• Future-proof fiber performance for current and future multigigabit applications
• Attaches directly to MTP or MPO mechanical connectors
• Eliminates the need to purchase separate cables for OSP and indoor/riser or plenum
applications
• Long periods of direct sunlight exposure will not damage cable
• Adjustable tension control on reel prevents over spin and entangling of cable

Features:

• Exceeds ANSI/TIA-568.3-D optical performance
• Dry-block design meets Telcordia ANSI/ICEA S-104-696 water-block requirements
• 3 mm subunit, All dielectric, Jacket rip cord.

Specifications:
