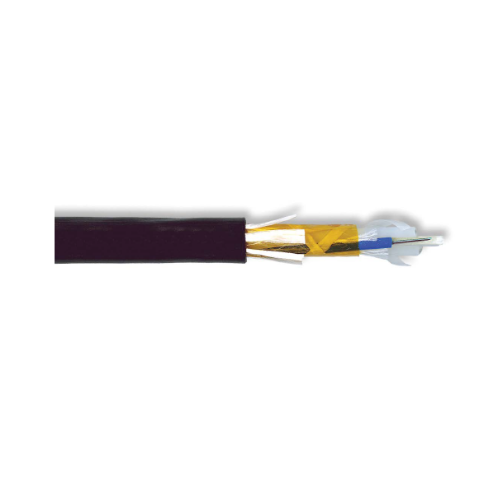

12 Fiber 62.5 Multimode TeraGain Loose Tube OFNR Indoor/Outdoor Riser Cable Black 130126G01

Product Information

Specification

About :

TeraGain 62.5/125 Multimode loose tube riser cables are ideal for campus environments, private networks and local area networks. Dual purpose cable allows a direct transition from indoor to outdoor applications with a single cable. These cables are fully water blocked with dry elements, stripping and termination is faster. The durable loose tube design features optical fibers placed inside PFM gel-filled buffer tubes.

The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). It is wrapped with flexible strength members, covered with a heat resistant, water-blocking tape and then encased with a black, flame and sunlight
resistant jacket.

Also Known as :

12 Fiber Cable, 12 Fiber Riser Cable, 12F Riser Cable, Multimode Fiber Cable, TeraGain Fiber Cable.

Performance Compliance:

• Telcordia GR-20-CORE, Issue 3
• UL 1666
• RoHS-compliant

Applications:

• Underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband network

Benefits:

• High fiber density
• Multiple network applications
• Eliminates grounding or bonding problems
• Non-sticky gel speeds fiber access and clean-up

Features:

• Available with up to 288-fiber
• Dielectric outer strength members
• Dry (SAP) core standard
• Transitions from indoor to outdoor to indoor with no termination
• PFM gel
