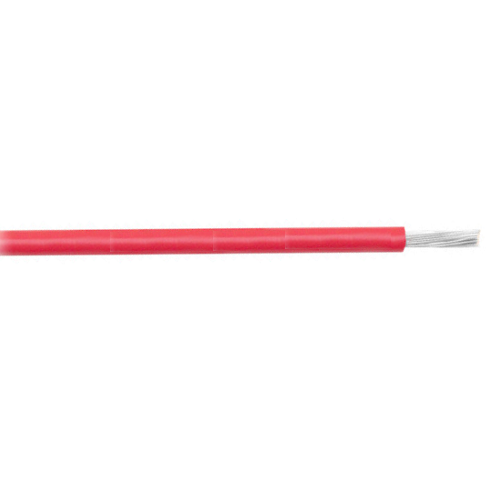

12 AWG 65 Strands Red Jacket Marine Wire (Standard Lengths)
Also Known As:
Marine Battery Cable, Durability Cable, Flexibility Cable, Gauge Marine Wire, Highest Quality Cable, Red Jacket Cable
About:
12 AWG UL approved marine wire is manufactured to withstand harsh marine environments. It is designed to meet and exceed extremely stringent specifications. This 12 AWG marine wire is built in-house to ensure the absolute highest level of quality. This cable is constructed from Type III class K tinned copper. It offers superb durability and flexibility. The tinned copper conductors resist corrosion and add to the life of the wire. What type of insulation is used Well, after the copper is tinned, the following step is to insulate it with a flexible PVC jacket. This insulation is designed to protect the wire and makes it resistant to a multitude of hazards. These hazards include; alkali, abrasion, acid, gas, oil, flame and moisture. What standards and compliances does Pacer Group's wire meet This marine wire exceeds the standards and requirements of ABYC, NMMA, and UL.
Applications:
• Point to point wiring
• Internal wiring of panels and motors
Construction:
• Conductor: Type III annealed finely stranded tinned copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Voltage Rating: 600-V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
Standards:
• UL Standard 1426 BC-5W2
• ABYC: E-11.14
• UL: MTW
• Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems
• Temperature Rating: 105 °C Dry, 75 °C Wet
Features:
• Stranded, tinned copper conductors
• Highly flexible color coded insulation
Specifications:
• Size AWG: 12
• Conductor Stranding: 65/0.0100
• Nom. Jacket Thickness: 0.032 Inch
• Nom. Cable O.D. : 0.160 Inch
• Nom. Circular Mils: 6500
• Part Number: NNCWUL12RD
