1000' 24 AWG 4 Pairs Black CAT5E Direct Burial Shielded Gel Flooded Core LLDPE Jacket Cable

Product Information

Specification

DESCRIPTION:

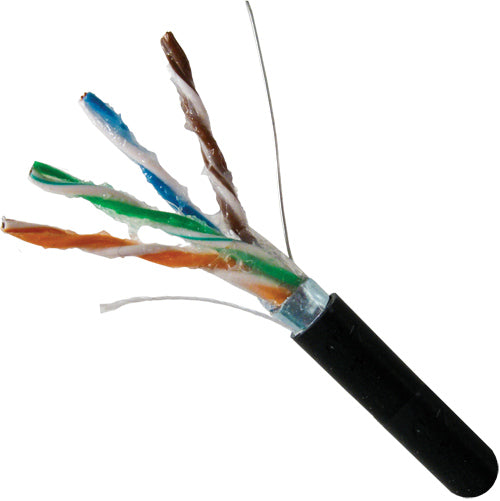

CAT5E F/UTP, CMX Direct Burial, Flooded Core, 8-Conductor, Outdoor Jacket, 24 AWG
Solid-Bare Copper.

FEATURES:

⦿ High-Performance Data Cable

⦿ 3 MHz Bandwidthth for Data Applications,
     Fast Ethernet an155 Mbpsps TP-PMD/CDDI

⦿ Category-5E Shielded Twisted Pair

⦿ Easily Identified Color-Striped Pairs

⦿ 24 AWG Solid Copper Conductors

⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801

⦿ CAN/C-C22.2.2 No. 214

⦿ Direct Burial Gel Filled (Flooded Core)

⦿ ETL Listed, RoHS Compliant

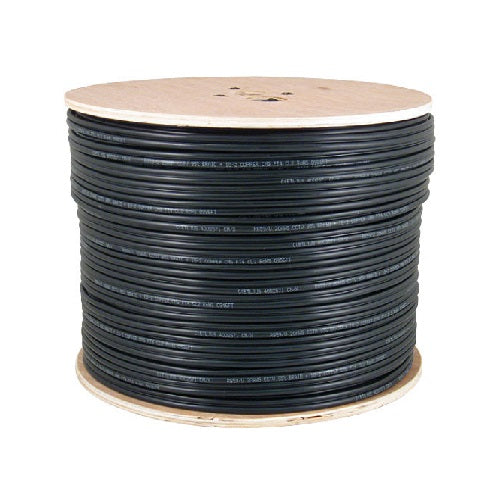

⦿ 1000 ft Wooden Spool

Technical Data:

⦿ Rated Temperature -40~ºCºC

⦿ Rated Voltage 60V

⦿ Product Standard Certification CMX

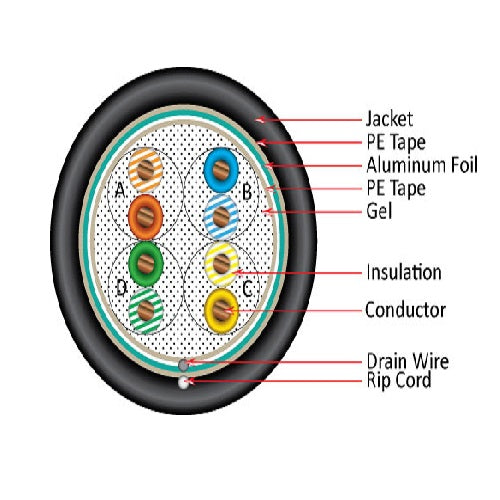

Conductor Solid Bare Copper:

⦿ Size 24 AWG

Insulation PE:

⦿ Average Thickness (mm) 0.228

⦿ Min. Point Thickness (mm) 0.220

⦿ Insulation Diameter (±0.005mm) 0.97

⦿ Twisted Pair Diameter (±0.01) 1.94

Filler Gel

⦿ PE Film Yes

⦿ Drain Wire (Solid Tinned Copper) (mm) 0.40

⦿ Al-foil Yes

Assembly Diameter 4.80:

(Jacket (Black) LLDPE (UV))
⦿ Average Thickness (mm) 0.60

⦿ Min. Point Thickness (mm) 0.54

⦿ Outer Diameter (±0.10mm) 6.15

⦿ Rip Cord: Yes

Color of Pairs:

⦿ Pai1: Blue, White-Blueue

⦿ Pai2: Orange, White-Orangege

⦿ Pai3: Green, White-Greenen

⦿ Pai4: Brown, White-Brown

Mechanical Characteristics:

⦿ Test Object Jacket

⦿ Test Material LLDPE

⦿ Before Tensile Strength (Mpa) ≥13.8

⦿ Aging Elongation (%) ≥100

⦿ Aging Condition (ºCxhrs) 100x168

⦿ After Tensile Strength (Mpa) ≥85% of unaged

⦿ Aging Elongation (%) ≥50% of unaged

⦿ Cold Bend (-40±2°C x 4 hrs): No Crack

Marking on Jacket:

⦿ VERTICAL 4001453 cETLus VERIFIED CMX UTP 4PR 24AWG OUTDOOR UV
CAT5E 350MHz TIA/E-568C.2.2 RoHS XXXFT
(SEQUENTIAL FOOT MARKERS ON JACKET)
