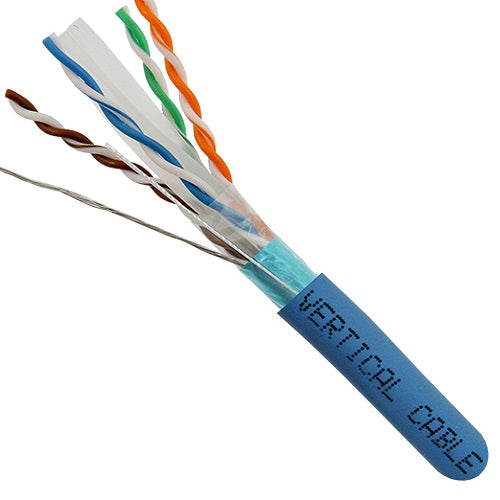

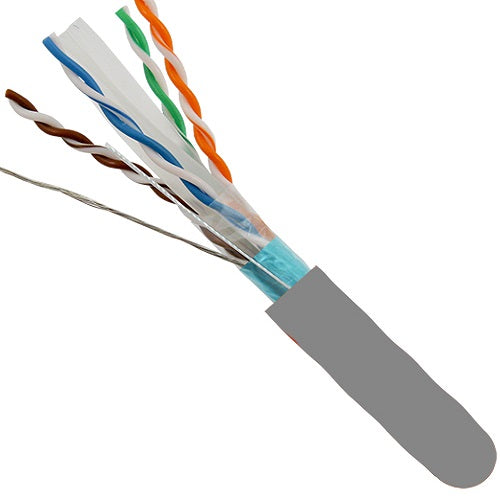

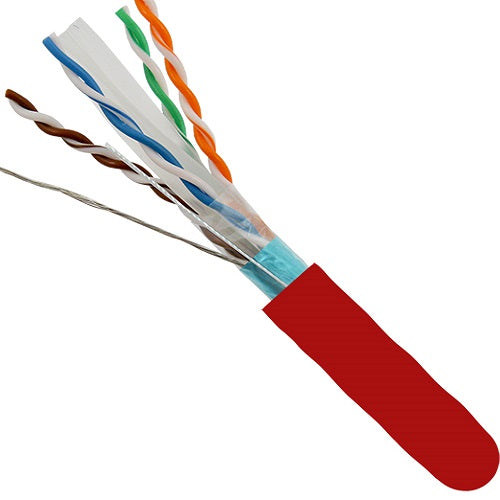

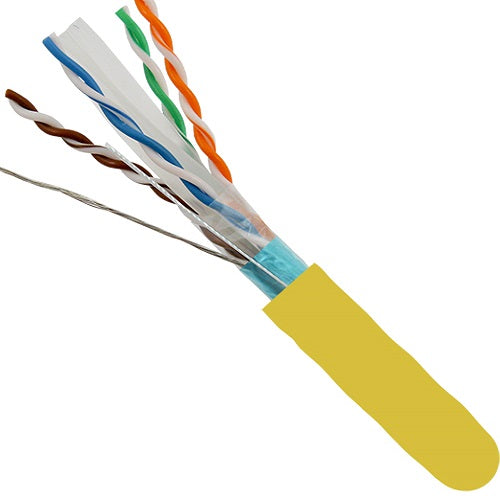

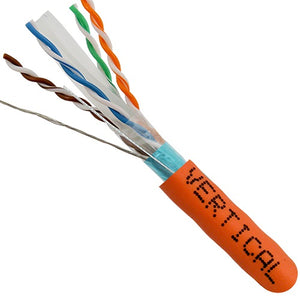

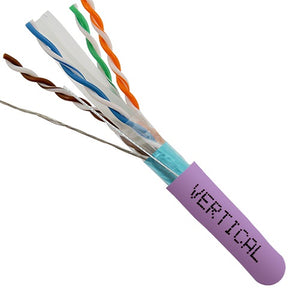

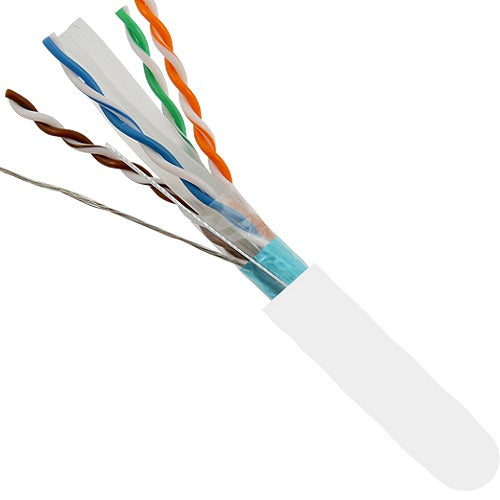

1000' 23 AWG 4 Pairs F/UTP Solid Bare Copper CAT6 550MHz Cable

Product Information

Specification

DESCRIPTION :

Category-6, 23AWG, F/UTP, 8C Solid Copper, 550MHz, Riser Rated, PVC Jacket 1000ft.

FEATURES :

⦿ High-Performance Category-6 Data Cable

⦿ 550MHz Bandwith for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI , Category-6 Shielded Twisted Pair

⦿ Riser Rated (CMR)

⦿ Easily Identified Color-Striped Pairs

⦿ 23AWG Solid Bare Copper Conductors

⦿ Exceeds TIA/EIA 568-C.2, ISO/IEC-11801

⦿ ETL Listed, RoHS Compliant

⦿ 1000ft Spool

Technical Data

⦿ Rated Temperature 75ºC

⦿ Rated Voltage 60V

⦿ Product Standard Certification CMR

⦿ NVP 70%

Conductor Solid Bare Copper :

⦿ Size 23 AWG

Insulation PE :

⦿ Average Thickness (mm) 0.29

⦿ Insulation Diameter (±0.005mm) 1.15

⦿ Filler LDPE

⦿ Bond PE

⦿ Tape Shield AL-Foil

⦿ Drain Wire (TC) 0.5

Jacket PVC

⦿ Average Thickness (mm) 0.64

⦿ Outer Diameter (±0.10mm) 7.6

⦿ Rip Cord Yes

Color of Pairs :

⦿ Pair 1 Blue,White-Blue

⦿ Pair 2 Orange,White-Orange

⦿ Pair 3 Green,White-Green

⦿ Pair 4 Brown,White-Brown

Mechanical Characteristics :

⦿ Test Object Jacket

⦿ Test Material PVC

⦿ Before Tensile Strength (Mpa) ≥10.34

⦿ Aging Elongation (%) ≥100

⦿ Aging Condition (ºCxhrs) 100x168

⦿ After Tensile Strength (Mpa) ≥7.21

⦿ Aging Elongation (%) ≥45%

⦿ Cold Bend (-20±2º Cx4hrs) No Crack

Marking on Jacket :

⦿ VERTICAL 4001453 c(ETL) VERIFIED CMR FT4 F/UTP SHIELDED 4PR 23AWG CAT6 550MHz TIA/EIA-568C.2 ISO/IEC 11801:2002 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
