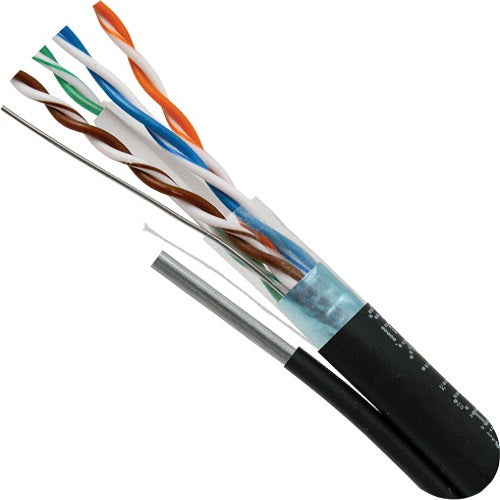

1000' 23 AWG 4 Pairs Black CAT6 Solid Bare Copper Messenger LLDPE Jacket Outdoor Cable

Product Information

Specification

DESCRIPTION :

Category-6 550Mhz, F/UTP Overall Shielded Outdoor Rated Cable with Messenger
23AWG Solid-Bare Copper.

FEATURES :

⦿ Ideal for Outdoor Aerial Applications

⦿ Category-6 Cable

⦿ Outdoor Rated with Messenger Wire, Shielded, LLDPE Jacket

⦿ Galvanized Steel Messenger for Support

⦿ Easily Identified Color-Striped Pairs

⦿ 23AWG Solid Copper Conductors

⦿ Exceeds TIA/EIA-568C.2 Standards

⦿ ETL Listed, RoHS Compliant

⦿ 1000ft Wooden Spool

Technical Data

⦿ Rated Temperature 70ºC

⦿ Rated Voltage 60V

⦿ Flammability Test IEC-332-1

Conductor Solid Bare Copper

⦿ Size 23 AWG

Insulation PE

⦿ Average Thickness 0.008 in (0.213 mm)

⦿ Insulation Diameter 0.039 in (1.01 ±0.005 mm)

⦿ Twisted Pair Diameter 0.079 in (2.02 ±0.01 mm)

Seperator/Spline LDPE

⦿ Drain Wire 0.016 in (0.40 mm) (TC)

⦿ Aluminum Foil Yes

⦿ Assembly Diameter 0.24 in (6.20 mm)

Messenger Galvanized Steel

⦿ Diameter 0.05 in (1.30 mm)

Jacket (Black) LLDPE (UV Rated)

⦿ Average Thickness 0.03 in (0.80x0.65 mm)

⦿ Outer Diameter 0.31 in (7.80x2.60 ±0.10mm)

⦿ Rip Cord Yes (Nylon)

Color of Pairs

⦿ Pair 1:Blue,White-Blue

⦿ Pair 2:Orange,White-Orange

⦿ Pair 3:Green,White-Green

⦿ Pair 4:Brown,White-Brown

Mechanical Characteristics

⦿ Test Object Jacket

⦿ Test Material LLDPE

⦿ Before Tensile Strength (Mpa) >=10.6

⦿ Aging Elongation (%) >=300

⦿ Aging Condition (ºCxhrs) 100x168

⦿ After Tensile Strength (Mpa) >=85% of unaged

⦿ Aging Elongation (%) >=50% of unaged

⦿ Cold Bend (-20±2º Cx4hrs) No Crack

Marking on Jacket

⦿ VERTICAL 4001453 cETLus VERIFIED CMX F/UTP 4PR 23 AWG OUTDOOR UV WITH MESSENGER CAT6 550MHz
TIA/EIA 568.2-D RoHS XXXFT
