1000' 23 AWG 4 Pairs Black CAT6 F/UTP Direct Burial Solid Bare Copper Outdoor Cable

Product Information

Specification

DESCRIPTION :

CAT6 F/UTP Outdoor, Direct Burial (UV), 23 AWG Solid-Bare Copper.

FEATURES :

⦿ High-Performance Data Cable

⦿ 550MHz Bandwidth for Data Applications

⦿ CAT6 with Overall Shield

⦿ Dual Jacket Direct Burial UV Rated

⦿ 23AWG Solid Copper Conductors

⦿ IEC 61156-5, IEC11801, ANSI/TIA 568D.2, UL444

⦿ ETL Listed, RoHS Compliant

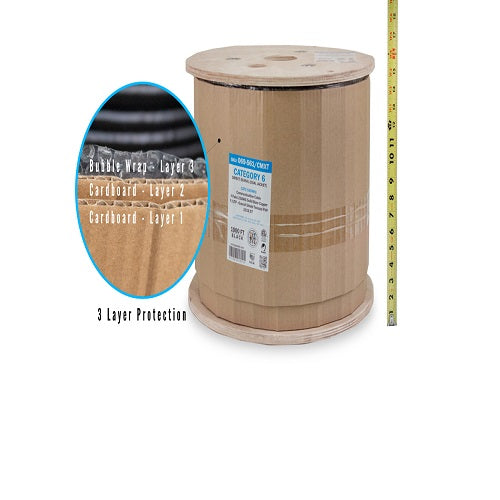

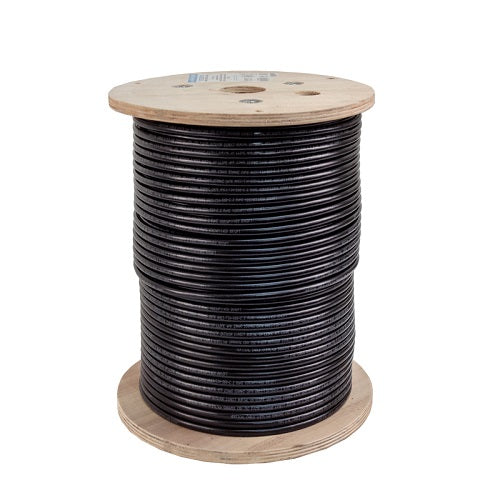

⦿ 1000ft Wooden Spool

Technical Data

⦿ Operating Temperature -40~+60 ºC

⦿ Installation Temperature 0~+50 ºC

⦿ Voltage Rating 60 V*

Conductor Solid Bare Copper

⦿ Size 23 AWG

Insulation Three Pairs with HDPE

⦿ One pair with Foam PE

⦿ Average Thickness 0.012 in (0.308 mm)

⦿ Insulation Diameter 0.046 in (1.189 mm ±0.02)

⦿ Insulation Rating 300 V*

Separator HDPE

⦿ Rip Cord Yes

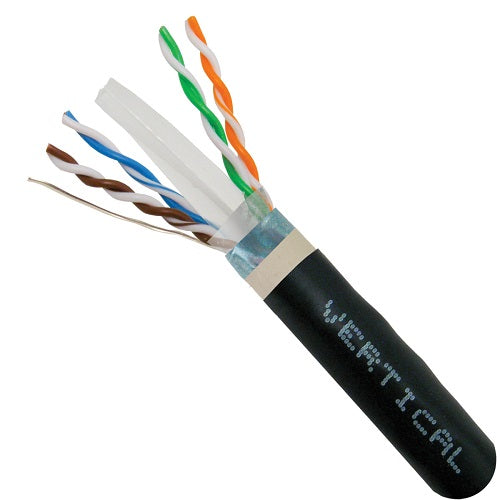

Overall Shield

⦿ PET Tape and Aluminium poly laminate 0.015 in (0.4 mm +/-0.01)

⦿ TC Drain Wire

Inner Jacket PVC (ROHS and IEC60332-1 flame rate)

⦿ Nominal Diameter 0.29 in (7.3 mm +/- 0.4)

⦿ Nominal Thickness 0.019 in (0.5 mm +/-0.1)

Outer Jacket LLDPE (ROHS+UV)

⦿ Nominal Diameter 0.36 in (9.2 mm +/- 0.5)

⦿ Nominal Thickness 0.026 in (0.65 mm +/-0.1)

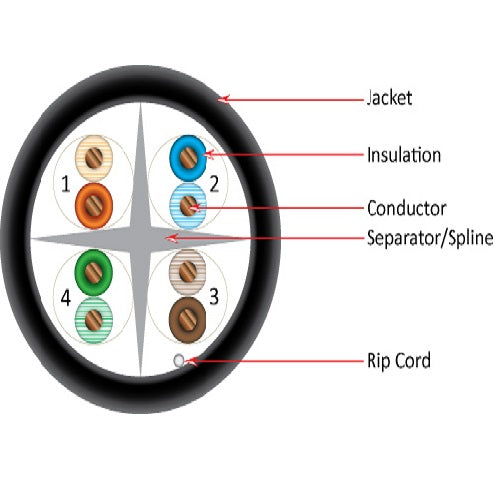

Colors of Pairs

⦿ Pair 1: Blue,White-Blue

⦿ Pair 2: Orange,White-Orange

⦿ Pair 3: Green,White-Green

⦿ Pair 4: Brown,White-Brown

Mechanical Characteristics

⦿ Test Object Jacket

⦿ Test Material LLDPE

⦿ Before Tensile Strength (Mpa) ≥14.8

⦿ Aging Elongation (%) ≥100

⦿ Aging Condition (ºCxhrs) 100x240

⦿ After Tensile Strength (Mpa) ≥85% of unaged

⦿ Aging Elongation (%) ≥50% of unaged

⦿ Cold Bend (-40±2º Cx4hrs) No Crack

⦿ Maximum Pulling Force 100 N

⦿ Minimum Bending Radius 8XOD

Marking on Jacket

⦿ VERTICAL 4001453 c(ETL)us VERIFID F/UTP 4PR 23 AWG OUTDOOR
DIRECT BURIAL UV LLDPE CAT6 550MHZ CMX 75C ANSI/TIA-568.2-D RoHS
V1379P12189 XXXXFT
