1000' 23 AWG 4 Pairs Black CAT6 CMXF Direct Burial Gel-Flooded Core LLDPE Jacket Cable

Product Information

Specification

1000' 23 AWG 4 Pairs Black CAT6 CMXF Direct Burial Gel-Flooded Core LLDPE Jacket Cable

DESCRIPTION:

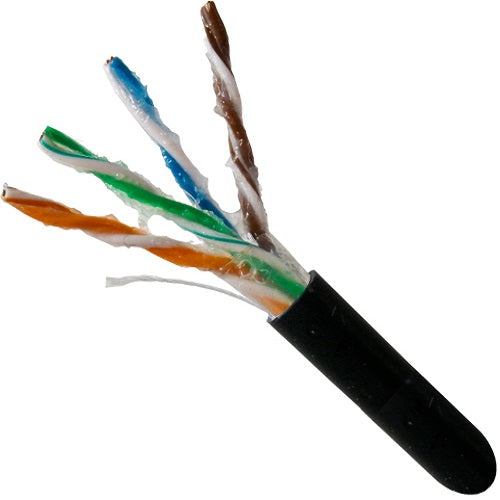

Category-6 CMXF cable with 8 solid bare copper conductors (23 AWG), gel-filled for moisture resistance and suitable for direct burial applications.

FEATURES:

⦿ Easily Identified Color-Striped Pairs
⦿ 23 AWG Solid Copper Conductors
⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA-C22.2 No. 214
⦿ ETL Listed, RoHS Compliant

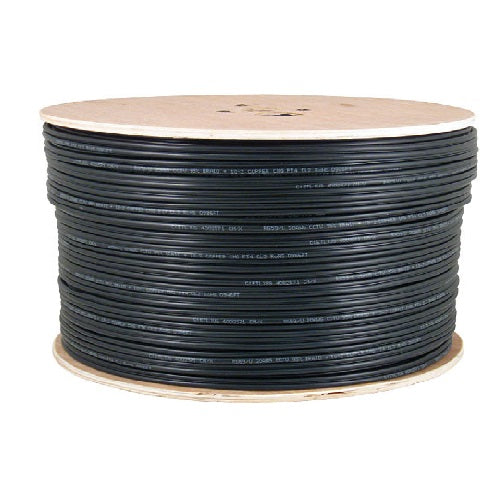

⦿ 1000ft Wooden Spool
⦿ High-Performance Data Cable
⦿ 550 MHz Bandwidth for Data Applications,
⦿ Fast Ethernet and 155Mbps TP-PMD/CDDI
⦿ Category-6 Unshielded Twisted Pair

Technical Data

⦿ Rated Temperature: -40~70ºC
⦿ Rated Voltage 60V
⦿ Flammability Test IEC-332-1

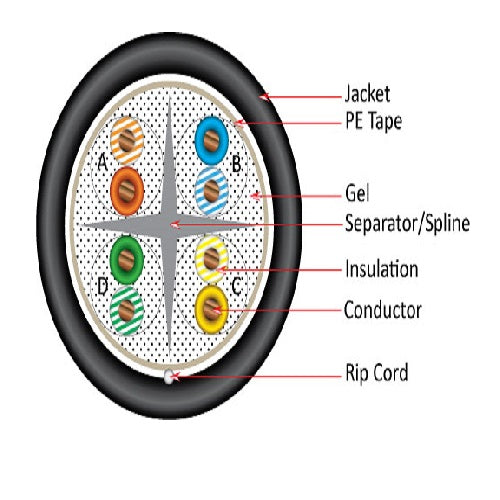

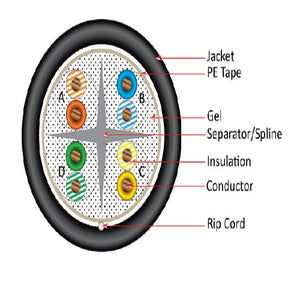

Conductor Solid Bare Copper

⦿ Size 23 AWG

Insulation PE

⦿ Insulation Diameter (±0.01mm) 1.01
⦿ Twisted Pair Diameter (±0.02 mm): 2.02

Separator PVC

⦿ Assembly Diameter 5.00

Jacket LLDPE

⦿ LLDPE (UV) Outer Diameter (±0.30mm) 6.20
⦿  Rip Cord Yes
⦿  Color: Black

Color of Pairs

⦿ Pair 1: Blue, White-Blue
⦿ Pair 2: Orange, White-Orange
⦿ Pair 3: Green, White-Green
⦿ Pair 4: Brown, White-Brown

Mechanical Characteristics

⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (MPa) ≥ 13.8
⦿ Aging Elongation (% ≥ 100
⦿ Aging Condition (ºCxhrs) 100x168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (% ≥ 50% of unaged
⦿ Cold Bend (-40±2º C x 4 hrs) No Crack

Jacket Marking:

⦿ VERTICAL 4001453 cETLus VERIFIED UTP 4PR 23AWG OUTDOOR DIRECT BURIAL (FLOODED) UV LLDPE CAT6 600MHz ANSI/TIA-568.2-D RoHS V1379P12459 XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
