10-12 AWG Reel Smart Terminal Ring Yellow PNF10-14R-2K (Pack Of 2000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification :
| Product Type | Ring Terminal |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-157) |
| Stud Size | 1/4" |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Sub Brand | Reel Smart™ |
| Barrel Type | Funnel |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Nylon |
| Flammability Rating | UL94-HB |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Overall Length (mm) | 30.7 |
| Overall Width (mm) | 13.2 |
| For Use With | Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator |
| Part No. | PNF10-14R-2K |
Description:

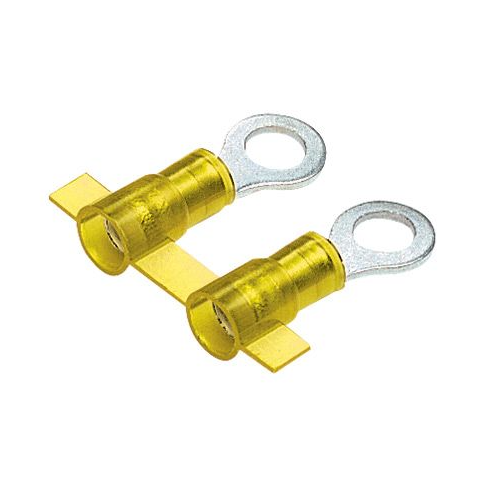

The PNF10-14R-2K Reel Smart Terminal is a continuously molded, nylon insulated, ring terminal with funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.
Part Features
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Ring tongue design assures a secure connection in high vibration applications
• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
