Product Information

Specification

Part No	49113
Size	1 X 10
Weight	1.280
Shape	Nipple
Category	Nipples And Fittings

1" X 10" Welded Stainless Steel 316 Nipples And Fittings 49113

Description:

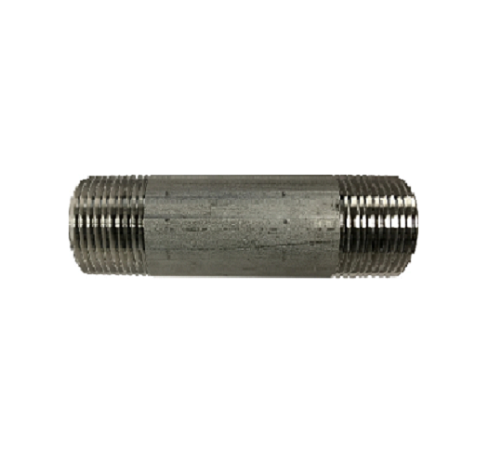

1 X 10 WELDED STAINLESS STEEL NIPPLE 316

Features:

SCHEDULE 40 WELDED

◑ Stainless steel pipe nipples are manufactured from stainless steel pipe

◑ That conforms to specification ASTM A312/ SA312.

◑ All stainless steel nipples conform to specification ASTM A733.

◑ Threads conform to the requirements of ANSI B1.20.1.

316 SCHEDULE 40 Stainless Steel Nipples

◑ For severe environments. Of course, there are many industrial processes that require a higher level of resistance to corrosion than Type 304 can offer. For these applications, Type 316 is the answer

◑ In type 316, the nickel content is increased slightly. What distinguishes Type 316 from Type 304 is the addition of molybdenum up to a maximum of 3%

◑ Molybdenum increases the corrosion resistance of this chromium-nickel alloy to withstand attack by many industrial chemicals and solvents, and, in particular, inhibits pitting caused by chlorides. As such, molybdenum is one of the single most useful
alloying additives in the fight against corrosion.

◑ Type 316 is the main stainless used in the marine environment, with the exception of fasteners and other items where strength and wear resistance are

 View Catalog Page
