Product Information
Specification
| Shape: | Tee |
| A: | 0.84 |
| B: | 0.83 |
| Body Size: | 0.25 |
| Hose Barb Size 1 2 X 3: | 1/8” |
| Part Number: | 32367 |
| Approx Weight: | 0.020 LBS |

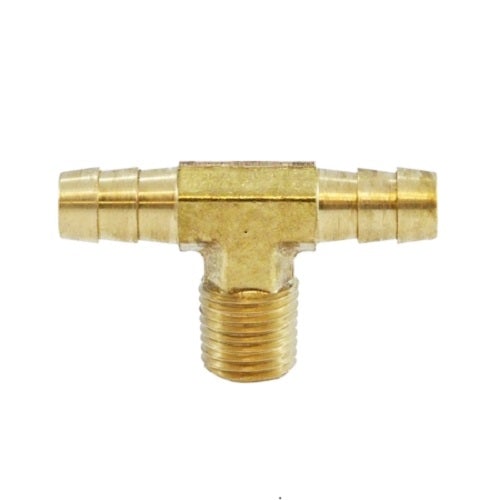

1/8" HoseBarb Tee Brass Fittings 32367
Description:
1/8 HOSE BARB TEE
Also Known As:
Tee , Barstock Tee , HoseBarb Tee , Male Tee , Brass Tee
• Temperature and Working Pressure Ranges
From -400 F to + 1600 F at 150 PSI maximum.
• Tolerance
+/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
• Assembly Instructions
1- Cut hose cleanly and squarely to length.
2- Slide clamp on hose.
3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4- Position hose clamp as shown and secure with a screwdriver or wrench. Maintain “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right)
View Catalog Page
