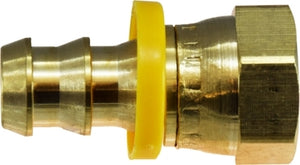

1/4" Stainless Steel Push On Hose Barb X 1/4" F 45/37 Flare Swivel 30231
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| A: | 1.53 |
| B: | 0.87 |
| Hex: | 0.62 |
| Part Number: | 30231 |
| Thread: | 1/220 |
| Approx Wt Lbs: | 0.04 lbs |
| Hose Id X Male Bspt : | 1/4" x 5/16" |
| Shape: | Straight/Connector |
1/4" X 1/4" Stainless Steel Push-On Hose Barb X F 45/37 Flare Swivel 30231
Also Known
1/4" X 1/4" Stainless Steel Push-On Hose Barb X F 45/37 Flare Swivel
Typical Application:
Low-Pressure Air, Fuel, Lube, and Oil Lines
• Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI. Advantages: Easy assembly. No clamps are needed!!
• Assembly Instructions
1- Lubricate insert.
2- Hold the hose at an angle to insert over the first barb.
3- Continue to push straight on until the hose is seated under the protective plastic cap. Keep hands back from the hose end area so that hose can expand.
• Disassembling Instructions
1- Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2- Bend hose and remove with a quick pull.
