1/4" Hose Barbed X 1/4" Male BSPT Hose Barb X Male Flare 45 Degree Adapter Hose Barb Brass Fittings 32081

Product Information

Specification

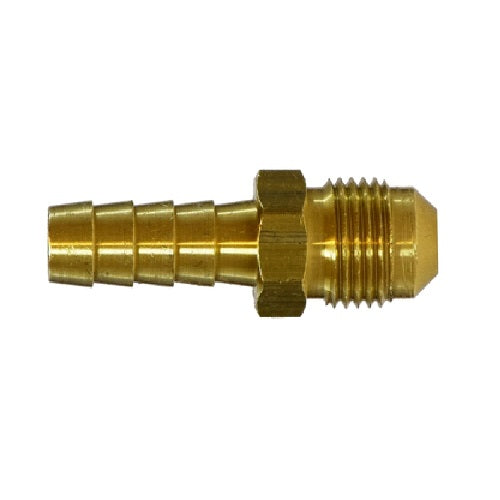

1/4" X 1/4" Hose Barb X Male Flare 45 Degree Adapter Hose Barb Brass Fittings 32081

Description:

1/4 X 1/4 HOSE BARB X M FLARE

Also Known As:

Male Adapter , Brass Fitting, Pipe Fitting, Adapter , Hose Barb , 45 Degree Adapter

•  Temperature: Working Pressure Ranges From -400 F to + 1600 F at 150 PSI maximum.
• Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
• Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
• Assembly Instructions: 1- Cut hose cleanly and squarely to length.

1. Slide Clamp On Hose.
2. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
3.  Position hose clamp as shown and secure with a screwdriver or wrench. Maintain “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right).
