Product Information
Specification
| Part No : | 38019 |
| Weight: | 0.060 |
| Shape: | Union |
| Tube OD : |
1/4” |
| Note: | SAE# 100101BA |

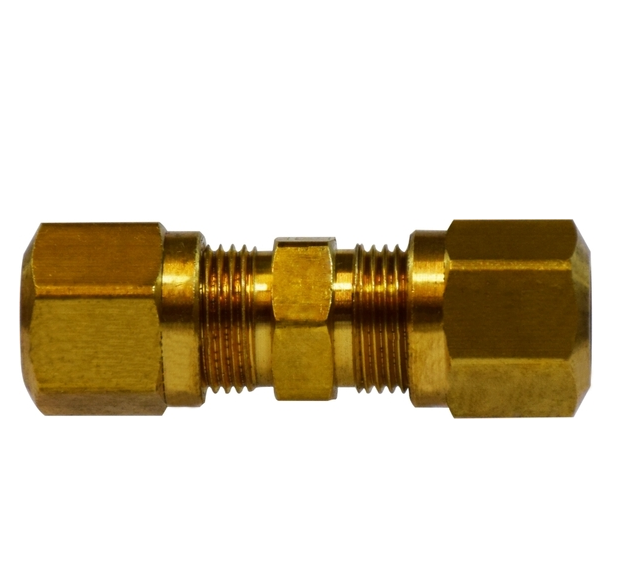

1/4" Air Brake Union-nylon Air Brake Brass Fittings 38019
Description:
1/4 AIR BRAKE UNION-NYLON AIR BRAKE
Advantages:
•Easy to assemble (no tube preparation or flaring required.) Built-in tube support. Fittings utilize a ribbed sleeve for compression and positive grip. May be used with copper tubing by replacing the nut, sleeve, and insert with a long nut and spherical sleeve. Insert should be removed for copper tubing used.
Typical Application
•Air brake systems except where temperatures exceed +2000F or where battery acid can drip on the tubing.
Pressure
•Maximum operating pressure of 150 PSI.
Vibration
•Fair resistance.
Temperature Range
•-400F to +2000F (-400C to +930C).
Material
•Brass
Used With
•NT Nylon Tubing - SAE J844 Type A and B.
Tolerance
•+/- .02 on all dimensions. Dimension data can change without notice. Please call us when the dimensions are critical
Conformance
•Meets specifications and standards of SAE and DOT FMVSS 571,106.
