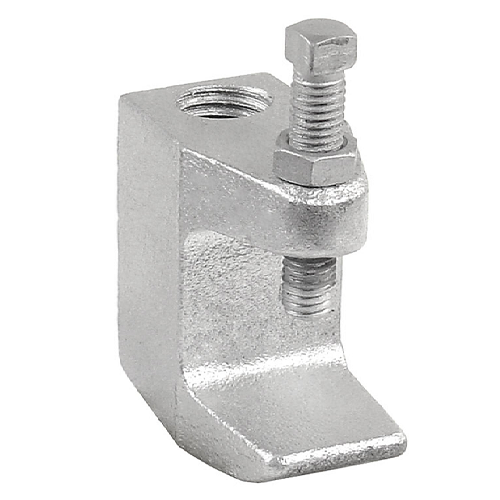

1-3/8" Reversible Beam Clamp With 3/4-10 Threaded Hole MFC-3410 (pack of 40)

Product Information

Specification

About :

These clamps are often made from high-strength steel or other durable metals to withstand significant loads and stress. They are designed to be robust and long-lasting. The 3/4-10 specification for the threaded hole refers to the diameter and thread count. A 3/4" diameter hole with 10 threads per inch is a common size, suitable for accommodating various types of threaded rods or bolts. The reversible feature allows the clamp to be flipped or rotated to fit different beam sizes or orientations. This versatility makes it suitable for various applications in construction, manufacturing, or mechanical settings. Quality beam clamps should meet relevant safety standards and building codes. This includes factors like material strength.

Also known as:

Industrial Beam Clamp, Construction Beam Clamp, Universal Beam Clamp, Threaded Hole Beam Clamp, Mechanical Beam Clamp.

Specification:

Material : Black Iron
Height : 2.49 inch
Width : 1.21 Inch
Weight : 0.127 LBS
UPC : 785592407573

FEATURES:

• Through-hole in beam clamps allows drop rod length adjustment
• Hardened cup point set screws come with jam nuts to prevent vibratory loosening in industrial settings.
• Unfinished (black) malleable iron
• UL Listed
• Jaw Opening: 1-3/8"
• Hole Thread: 3/4"-10
• Static Load - Top Mount: 1000
• Static Load - Bottom Mount: 600
