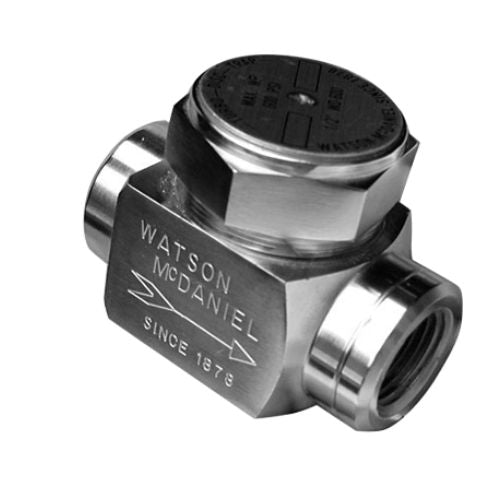

1/2 Inch Thermodynamic Clean Steam Trap/Air Vent FDA800-12-TCTC
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
Thermostatic clean steam traps are used in clean steam applications such as drainage for CIP/SIP systems and various process vessels. The universal horizontal connection allows the trap body to swivel to any angle. The FDA400 Series allows for a 90 degree connection on either the inlet or outlet capable of 360 degree orientation.
Also Known As:
Sanitary Steam Trap, Hygienic Steam Trap, Clean Steam Trap (Thermostatic Type), Balanced Pressure Thermostatic Steam Trap.
Specification:
| Product Type | Thermostatic Clean Steam Trap |
| Size | 1/2" |
| Connection | TC x TC |
| Max. Operating Pressure (psig) | 150 |
| Max. Allowable Pressure (psig) |
230 PSIG @ 850°F
|
| Max. Allowable Temperature |
850°F @ 230 PSIG
|
| Part No | FDA800-12-TCTC |
Features:
• Small and compact
• All 316L stainless steel components
• Works in any position (horizontal preferred)
