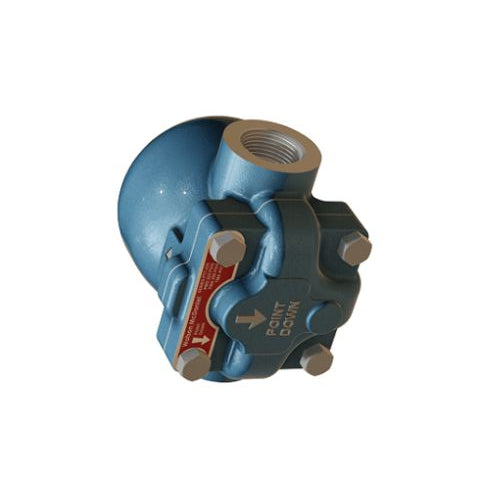

1/2 Inch FTT Series Float And Thermostatic Steam Trap NPT FTT-065-12-N

Product Information

Specification

About:

The FTT Series steam traps, with in-line pipe connections, are designed for efficient removal of condensate and air in both HVAC and industrial process applications, including unit heaters, water heaters, pressing machines, heat exchangers, and coils. Each trap features a high-quality welded stainless steel thermostatic air vent along with a durable stainless steel seat and mechanism. The float and thermostatic (F&T) design provides superior air-handling capabilities, making these traps a preferred choice over inverted bucket traps in most process applications. For drip applications, such as draining steam mains and steam supply lines, the 1/2” and 3/4” sizes are recommended.

Also Known As:

FTT Series FT Steam Trap, FTT Series Float and Thermostatic Trap, FTT In-Line FT Steam Trap, FTT Series Process Steam Trap, Float and Thermostatic Steam Trap.

Features:

• Ductile iron has a higher pressure and temperature rating and is more resistant to shock loads than cast iron.
• All stainless steel internals with hardened seat and wear parts
• Excellent air handling capability allows air to be discharged rapidly so steam can enter the system quickly during start-up
• F&T traps discharge condensate immediately as it is formed (no condensate will back up into the system)
• In-line repairability is simplified by having all internals attached to the cover
• Welded stainless steel thermostatic air vent resists shock from water hammer. Live orifice air vent is available for superheated applications
