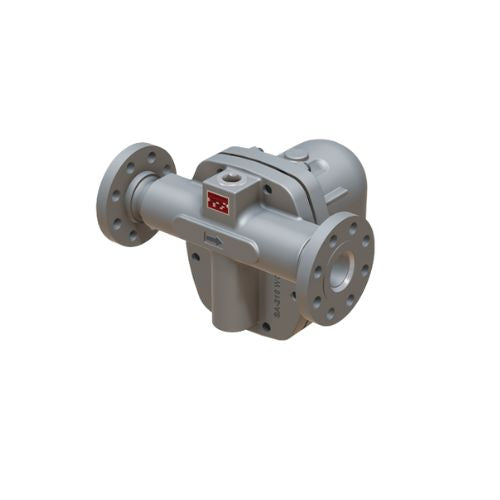

1/2 Inch FT600 Series Float And Thermostatic Steam Trap FT600-145-12-F600

Product Information

Specification

About:

The FT600 Series Steam Traps, available in sizes from 3/4" to 2", are built with a robust carbon steel body and feature in-line repairable connectors. They are specifically engineered to remove condensate and air from high-pressure steam systems or in applications where steel construction is preferred. Commonly used in chemical plants and petrochemical refineries, these traps are ideal for reboilers, heat exchangers, and other critical process equipment. Their float and thermostatic (F&T) design ensures excellent air-handling performance, making them a more effective option than bucket traps, particularly for fast system start-ups. The FT600 Series supports maximum steam pressures up to 450 PSIG.

Also Known As:

FT600 Series Float and Thermostatic Steam Trap, FT600 FT Steam Trap, FT600 Float Thermostatic Trap, FT600 Condensate Trap, FT600 Mechanical Steam Trap.

Features:

• In-line repairability is simplified by having all internals attached to the cover. The studded cover allows for easier removal of the body.
• Welded stainless steel air vent resists shock from water hammer. Live orifice air vent is available for superheated applications
• FT traps discharge condensate immediately as it is formed (no condensate will back up into the system)
• Investment cast steel body and cover with class 400 shell rating (670 PSIG @ 750 °F)
• Hardened stainless steel seat and disc for extended service life even at extreme temperatures and pressures
• Excellent air handling capability allows air to be discharged rapidly so steam can enter the system quickly during start-up
