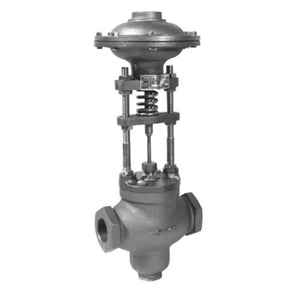

1/2 Inch Direct-Operated Pressure Regulating Valve 455-12-N-65
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Operated Pressure Regulating Valve |
| Size | 1/2" |
| Connection |
NPT
|
| Reduced Pressure Range (psig) | 0-6 |
| Max. Inlet Pressure (psig) |
250
|
| Min. Inlet Pressure (psig) |
5
|
| Max. Differential Pressure (psig) | 125 |
| Part No | 455-12-N-65 |
About:
Direct-operated pressure-regulating valves are designed for pressure reduction applications on steam, air, and other gases. Their balanced seat and disc design allows for effective operation even with low inlet pressures, down to 5 PSIG. Unlike pilot-operated valves, the 455 Series does not use small pilot orifices, making it less prone to problems caused by dirt or pipe scale. These valves use an external sensing line, installed several feet downstream, to measure pressure. Positioning the sensing line away from valve discharge turbulence ensures more accurate downstream pressure control.
Also Known As:
Direct-acting pressure regulator, direct-acting pressure-reducing valve, spring-loaded pressure regulator, direct spring-operated regulator, or mechanical pressure regulator.
Features:
• Operates with minimum inlet pressure of 5 PSIG
• Stainless steel internals
• Pressure-balanced valve & seat for more precise control of downstream pressure
• Excellent for use in steam systems that contain excessive amounts of pipe scale and other contaminants
Download PDF Spec Sheet
