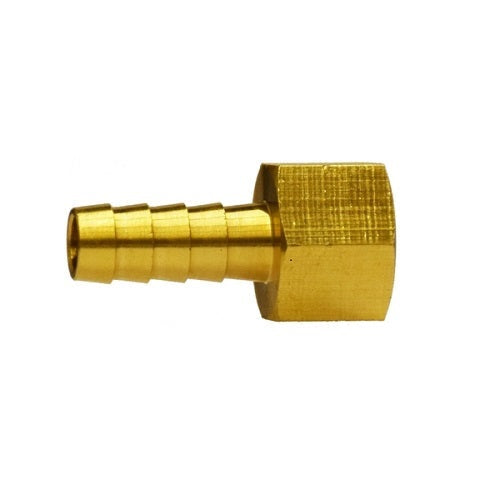

1/2" Hose Barbed X 3/4" FIP Hose Barb X FIP Rigid Female Adapter Brass Fittings 32443

Product Information

Specification

1/2" X 3/4" HoseBarb X FIP Rigid Female Adapter Brass Fittings 32443

Description:

1/2 X 3/4 HOSE BARB X FIP ADAPTER

Also Known As:

Adapter , HoseBarb Adapter , Adapter Fitting, Female Adapter , Brass Fittings Adapter

• Temperature and Working Pressure Ranges

From -400 F to + 1600 F at 150 PSI maximum.

• Tolerance

+/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Note: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.

• Assembly Instructions

1- Cut hose cleanly and squarely to length.

2- Slide clamp on hose.

3- Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.

4- Position hose clamp as shown and secure with a screwdriver or wrench. Maintain “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right)
