1-1/2" NPT 2270 Ultrasonic Level Sensor EPDM Seal PP Sensor Body 2270-P-1N-6

Product Information

Specification

Description

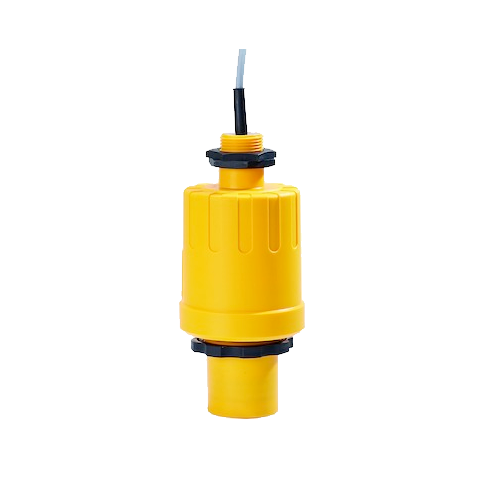

The Signet 2270 ultrasonic level sensor is a rugged, high performance ultrasonic level measurement sensor. 2270 has a transducer and processing electronics incorporated in one single housing.

For single and multiple tank applications 2-wire sensors are recommended using either HART protocol or 4 to 20mA for the direct communication with a panel mount controller or a PLC.

The 2270 level sensor is available with either PP or PVDF sensor bodies that provide excellent chemical resistance in applications where concentrated chemicals are detected. For use in sumps or tanks; for content measurement or open channel flow measurement. Series 2270 is ideal in the following applications: River water, seawater, potable water, demineralized water and treated water.

Features

⦿ Outstanding signal processing software provides highly accurate measuring results

⦿ Non-contact level metering

⦿ 2-wire compact sensor

⦿ Narrow 5° beam angle

⦿ Level, volume and open channel flow

⦿ PP or PVDF sensor body provides excellent chemical resistance

⦿ 4 to 20mA / HART interface

⦿ Secondary lightning protection

⦿ 32 points of linearization

⦿ Fully temperature compensated electronics
