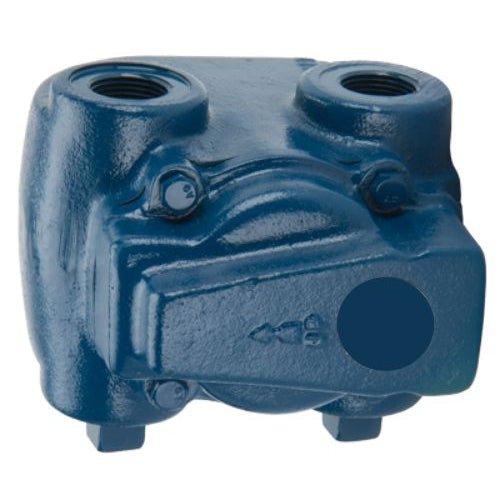

1 1/2" FT-Series Float and Thermostatic Steam Traps NPT FT77L-075-16-N

Product Information

Specification

Description

The FT Series steam traps are designed to operate at pressures up to 75 PSIG, making them well-suited for low-pressure HVAC systems and light industrial process applications. Commonly used in unit heaters, water heaters, pressing machines, heat exchangers, and coils, these float and thermostatic (F&T) traps provide reliable removal of condensate and air. They are also effective for drip applications, such as draining steam mains and supply lines. With superior air-handling capability, FT Series traps are often a more efficient alternative to inverted bucket traps in most process environments. Their dual inlet-outlet H-pattern connection enhances installation flexibility, allowing for easier integration into various system configurations.

Features

• Welded stainless steel thermostatic air vent resists shock from water hammer.

• In-line repairable all internals are attached to cover.

• H-pattern design allows piping from either side of the steam trap there are two inlet ports at top and two outlet ports at bottom.

• F&T traps have excellent air handling capability allows air to be discharged rapidly and steam to enter he system quickly during start-up.
