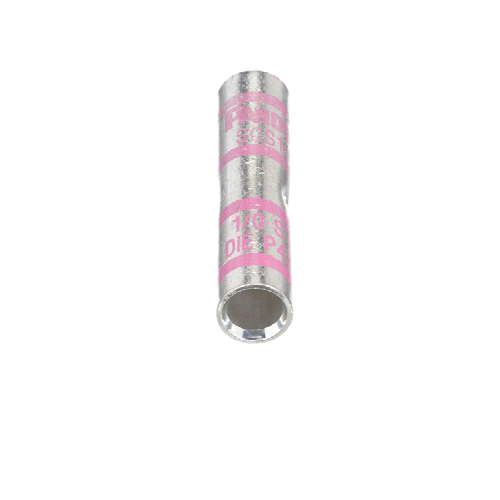

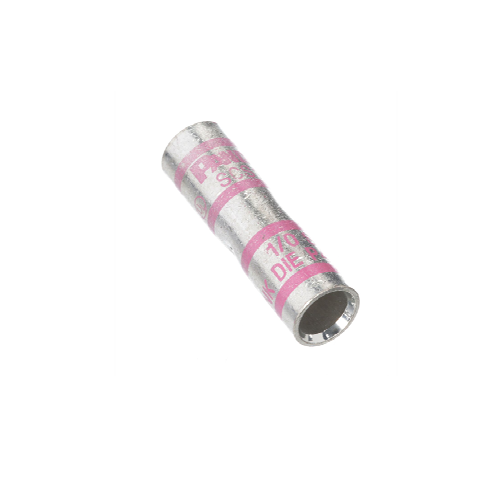

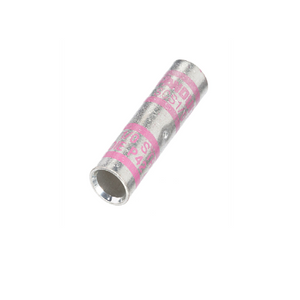

1/0 AWG Compression Splice Pan-Lug Tin-Plated Copper SCS1/0-X (Pack Of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Compression connectors, like the SCS1/0-X, are designed to provide a strong, reliable connection by mechanically compressing the connector onto the wire or cable. This compression ensures a tight, low-resistance connection, which is critical for maintaining good electrical conductivity and preventing issues like overheating or signal loss.
In the case of the SCS1/0-X compression connector, it is specifically designed for use with tin-plated copper cables, which are common in electrical and industrial applications. The tin plating on the copper wire provides additional resistance to corrosion and enhances the connector's overall performance in challenging environments.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | 1/0 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed and CSA Certified |
| Finish/Coating | Tin-Plated |
| Burndy Die Index Number | 12 |
| Panduit Die Index Number | P42 |
| T & B Die Index Number | 42 |
| Overall Length (In.) | 1.87 |
| Overall Length (mm) | 47.5 |
| Wire Strip Length (In.) | 7/8 |
| Wire Strip Length (mm) | 22.2 |
| UL Temperature Rating (°C) | 90 |
Features :
• Ccolor coded barrel, internal wire stops,tin plated to inhibit corrosion,NEBS Level 3
