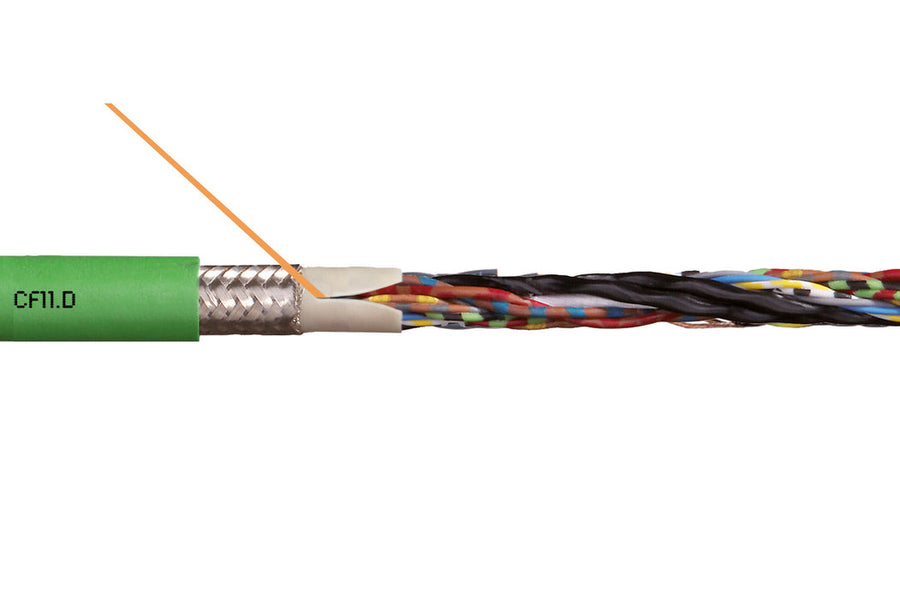

0.35 O.D. Chainflex Servo Motor Feedback Cable CF11-010-D
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
General properties
| Number of Conductors and AWG size | 4 PR x 24 AWG (0.25) | 2 C x 17 AWG (1.0) |
| Outer diameter max. | 0.35 inch (9.0 mm) |
| Copper index | 45.7 lbs/mft (68 kg/km) |
| Part Number | CF11-010-D |
Dynamic information
| Min. bend radius (factor) | 7.5 x d |
| Min. bend radius | 2.8 inch (71.3 mm) |
| Min. bend radius Factor | 6.0 x d |
| Min. bend radius Flexible | 2.2 inch (57.0 mm) |
| Min. bend radius, fixed (factor) |
4.0 x d |
| Min. bend radius, fixed |
1.5 inch (38.0 mm) |
| Temperature, e-chain® min. |
-31 °F (-35 °C) |
| Temperature, e-chain® max. |
194 °F (90 °C) |
| Temperature, flexible |
-58 °F to 194 °F (-50 °C to +90 °C) |
| Temperature, fixed |
-67 °F to 194 °F (-55 °C to +90 °C) |
| v max., unsupported |
33 ft/s (10 m/s) |
| v max. gliding |
20 ft/s (6 m/s) |
| a. max. | 328.1 ft/s² (100 m/s²) |
| Length of travel |
Travels up to 1312 ft and more (400 m and more) |
0.35 O.D. Chainflex Servo Motor Feedback Cable CF11-010-D
Description
The Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires. Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.
Features
• Requirements: For extremely heavy duty applications
• Outer jacket: TPE
• Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
• Halogen-free
• Silicone-free
• Hydrolysis and microbe-resistant
• PVC-free
Application
• For heavy duty applications
• Almost unlimited resistance to oil, also with bio-oils
• Indoor and outdoor applications withour direct solar radiation
• Unsupported and gliding travel distances up to 1,312 ft (400 m)
• Storage and retrieval units for high-bay warehouses, machining units/machine tools quick handling, cleanroom, semiconductor insertion, ship to shore, outdoor cranes, low- temperature applications
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
