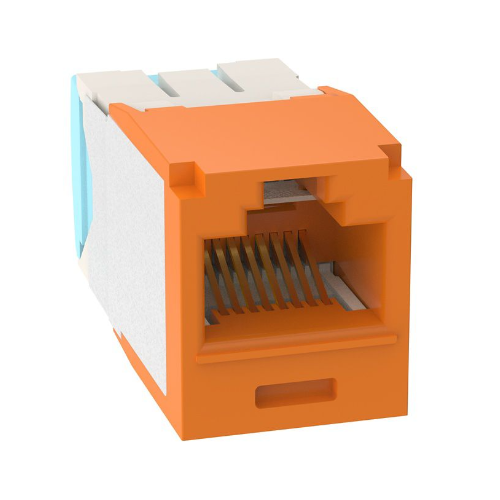

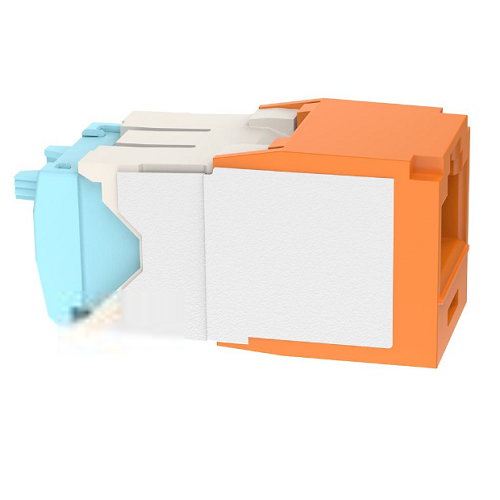

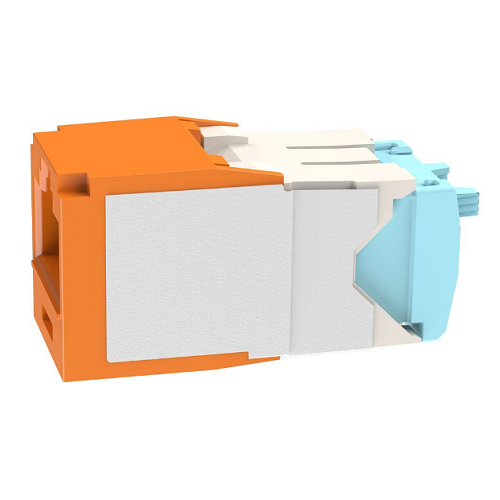

1 Port 28-30 AWG Mini-Com Cat6A 10Gig Jack Module TG Style UTP RJ45 CJT6X88TGOR

1 Port 28-30 AWG Mini-Com Cat6A 10Gig Jack Module TG Style UTP RJ45 CJT6X88TGOR
Roll over image to Zoom
1 Port 28-30 AWG Mini-Com Cat6A 10Gig Jack Module TG Style UTP RJ45 CJT6X88TGOR
Roll over image to Zoom
1 Port 28-30 AWG Mini-Com Cat6A 10Gig Jack Module TG Style UTP RJ45 CJT6X88TGOR
Roll over image to Zoom
1 Port 28-30 AWG Mini-Com Cat6A 10Gig Jack Module TG Style UTP RJ45 CJT6X88TGOR
Roll over image to Zoom

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Also Known As:

 Cat6A 10Gig UTP Jack
 Mini-Com High-Speed RJ45 Module
 TG Style Ethernet Connector
 28-30 AWG Network Jack
 Unshielded 10G Ethernet Port

About:

This specific jack module is meticulously designed for modern, high-speed networking needs. It supports 10 Gigabit Ethernet performance while accommodating 28-30 AWG wires. The module's unshielded design (UTP) makes it versatile for a range of applications where electromagnetic interference is minimal, and high-speed data transmission is required.

Specification:

Product Type Jack Module
Performance Level Category 6A
Connector Type Jack Module - 28AWG
Termination Style TG Style
Body Material Polycarbonate
Contact Material Plated Phosphor Bronze
Module Type Mini-Com
Wiring Scheme T568A/T568B
Shield Type Unshielded (UTP)
Sub Brand Pan-Net
Maximum Operating Temperature (°C) 75
Maximum Operating Temperature (°F) 167
Minimum Operating Temperature (°C) -10
Minimum Operating Temperature (°F) 14
Maximum Storage Temperature (°C) 75
Maximum Storage Temperature (°F) 167
Minimum Storage Temperature (°C) -40
Minimum Storage Temperature (°F) -40
Resistance Properties Heat-Resistant
Color Orange
Overall Depth (In.) 1.5
Overall Height (In.) 0.72
Overall Length (In.) 1.5
Overall Width (In.) 0.64
Part No: CJT6X88TGOR

Common Applications:

 Data Centers: Suitable for setups that require high-speed data transmission and are engineered to mitigate electromagnetic interference
 Enterprise Networks: Ideal for businesses that require rapid, reliable, and efficient data transfer
 High-Performance Computing Environments: Used where high-speed data transfer and processing are critical
• Smart Buildings: Integrated into intelligent infrastructure for optimal performance and data handling

Features:

 10Gig Performance: Supports data transfer rates up to 10 Gbps, ensuring high-speed connectivity
 Tool-Less Installation: TG Style design allows for quick and efficient installations, reducing labor time and costs
 Versatility: The UTP design makes it a flexible solution for various standard networking applications
 Compact Design: Engineered to fit seamlessly into various networking environments, ensuring a blend of performance and aesthetic

Standards:

The standards can vary, but typically this module might adhere to:

 ANSI/TIA-568-C.2: Specifies the performance characteristics of twisted pair cables, connectors, and cable assemblies
 ISO/IEC 11801: An international standard for generic cabling in customer premises
 RoHS Compliant: Indicates that the manufacturing process is free of certain hazardous substances
 IEEE 802.3an: A standard for 10 Gigabit Ethernet over twisted pair cables

Construction:

 Material: Often built with durable plastic and quality metals for the contacts, ensuring long-lasting performance
 Compact Design: Engineered to be compact, fitting a variety of installation setups like patch panels, faceplates, etc.
 Connection Interface: Features an RJ45 connector ensuring universal compatibility and reliable connections with Ethernet cables

Download PDF Spec Sheet
