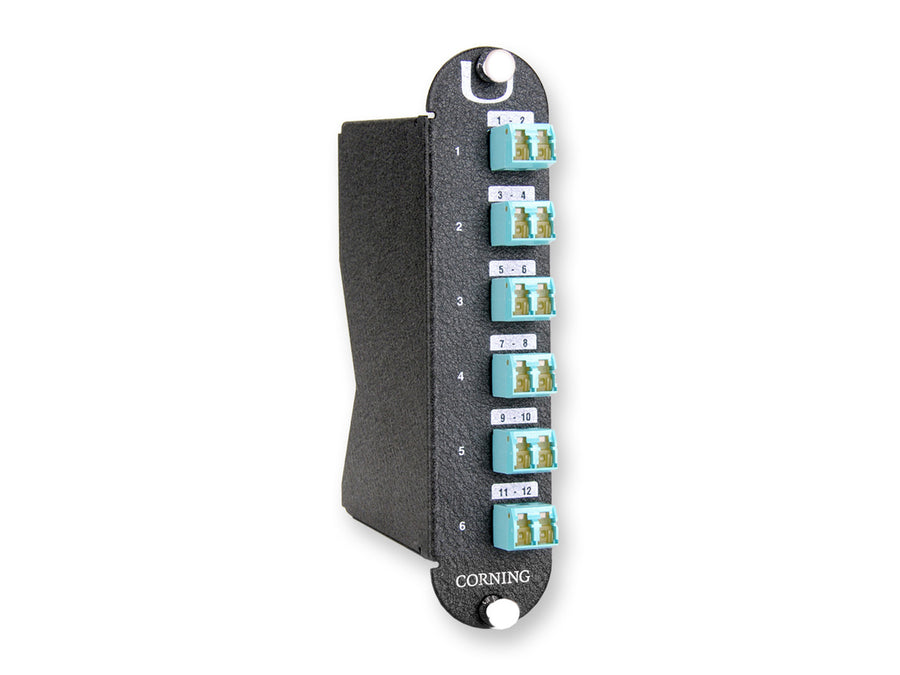

Plug & Play Universal Module Low-Loss 12 F Shuttered LC to MTP 50 µm Multimode (OM4) Corning CCH-UM12-05-93Q

Name: Plug & Play Universal Module Low-Loss 12 F Shuttered LC to MTP 50 µm Multimode (OM4) Corning CCH-UM12-05-93Q
Brand: Wire Xpress
SKU: CCH-UM12-05-93Q
Price: 489.0 USD
Availability: InStock
Rating: 4.91 (8366 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: CCH-UM12-05-93Q

Select a Variant

Plug & Play Universal Module Low-Loss 12 F Shuttered LC to MTP 50 µm Multimode (OM4) Corning CCH-UM12-05-93Q

Availability: In stock

Price:

Regular price: $489.00
Sale price: $489.00

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Qty:

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Fiber Category	50 µm MM (OM4)
Product Type	Panels and Modules
Application	Data Center LAN/SAN
Insertion Loss	0.5 dB
Fiber Count	12
Adapter Type Back	MTP®
Adapter Color Back	Aqua
Adapter Color Front	Aqua
Adapter Type Front	Shuttered LC
Number of Adapters per Panel	6
Housing Type	CCH
RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Part Number	CCH-UM12-05-93Q

Description

The Plug & Play™ modules provide the interface between the MTP® on the trunk and the LC or SC duplex jumpers that will then connect directly to the electronics. The LC duplex adapters feature hinged VFL-compatible shutters that move up and out of the way when the connector is inserted.
