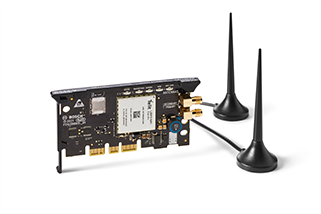

4G LTE Network Plug-in Cell Module VZW LTE Bosch B444-V
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Compatibilities:
| Devices |
‣ B9512G/B9512G-E, B8512G/B8512G-E |
| Cellular | 4G LTE - Cat 1 with 3G fallback |
Technical specifications:
Electrical
| Current (operating) | Standby: 35 mA Alarm: 100 mA |
| Voltage (operating) | 12 VDC nominal |
| Radio | Verizon LTE CAT 1, Bands 2, 4, 5 and 13 |
Environmental
| Environment | Environmental Class III - Indoor |
| Relative humidity | 5 - 93% at +32°C (+90°F) non-condensing |
| Operating temperature | 0°C to +49°C (+32°F to +120°F) |
Mechanical
| Board dimensions | 2 in x 3.68 in x 0.60 in (50 mm x 93.5 mm x 15.25 mm) |
| Antennas (included) | • Magnetic base omni-directional • 3.3 ft (1.0 m) cable with SMA connector |
| SIM card | Verizon SIM |
Parts Included:
| Quantity | Component |
| 1 | Cellular module |
| 2 | Antennas |
| 1 | Literature pack |
LED Functions:
| Blue (heartbeat) | System status indicator |
| Red | Unacceptable signal strength |
| Yellow | Marginal signal strength |
| 1 Green | Good signal strength |
| 2 Green | Very good signal strength |
Description:
The cellular communicator enables secure two-way IP communication over the Verizon cellular network by plugging into a compatible Bosch control panel.
Features
‣ Secure Conettix IP communication from compatible Bosch panels to Bosch receivers using Verizon LTE cellular network
‣ Remote programming and monitoring of compatible Bosch panels
‣ E-mail notification options u Direct configuration from Bosch Remote Programming Software (RPS) eliminates the need for separate set-up
‣ Simple LED status information and advanced keypad diagnostics available with easy two-step plug-in installation, troubleshooting, and maintenance.
Download PDF Spec Sheet
