22 AWG 19/34 Stranded Silver Coated Copper FEP High Temperature 200°C 600V M8777 Wire MS27110-22

Name: 22 AWG 19/34 Stranded Silver Coated Copper FEP High Temperature 200°C 600V M8777 Wire MS27110-22
Brand: Nassau National Cable
SKU: 22-awg-19-34-stranded-silver-coated-copper-fep-high-temperature-200-c-600v-m8777-wire-ms27110-22
Availability: InStock
Rating: 4.91 (8285 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

22 AWG 19/34 Stranded Silver Coated Copper FEP High Temperature 200°C 600V M8777 Wire MS27110-22

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.00 /FT
Sale price: $0.00 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

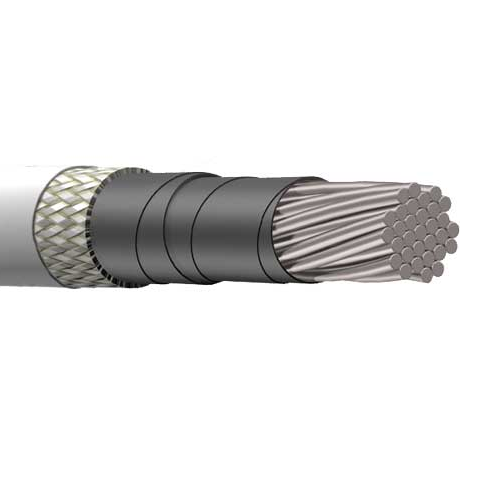

22 AWG 19/34 Stranded Silver Coated Copper FEP High Temperature 200°C 600V M8777 Wire MS27110-22

Allowable Ampacity for 22 AWG 19/34 Stranded Silver Coated Copper FEP High Temperature 200°C 600V M8777 Wire MS27110-22: 100 Amps

Applications:

• High temperature, aircraft applications

Also Known as :

MS27110 Cable, Military Wire, M8777 Wire, High-Temperature Wire, Polyester Braid Cable, Silver Coated Cable, Mil-Spec cable, Aircraft Cable

Description :

• Conductor: Stranded silver-coated copper conductor
• Insulation: Silicone rubber
• Braid: Glass braid impregnated with silicone or PTFE
• Jacket: Extruded clear fluorinated ethylene propylene (FEP)
• Temperature rating: 200°C
• Voltage rating: 600 volts

Specification :

• AWG: 22
• Stranding: 19/34
• Nom. Diameter of Conductor: 0.030 inches
• Nom. O.D: 0.086 inches
• Weight: 0.0074 lbs
• Part Number: MS27110-22

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
