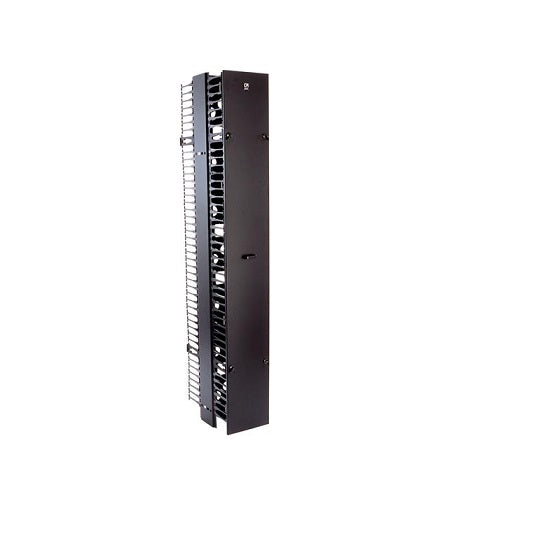

Master Cabling Section with Extended Fingers Double-Sided 7"H X 12"W CPI 40097-703

Product Information

Specification

Type	Master Cabling Section with Extended Fingers
Use With	45U Rack
Width	12" (300.0 mm)
Height	7' (2.1 m)
Color	Black
Part Number	40097-703

Master Cabling Section with Extended Fingers Double-Sided 7"H X 12"W CPI 40097-703

Description

The MCS Master Cabling Section virtually eliminates the need for horizontal cable managers by providing frequent 1U spacing of the cable guides that aligns precisely with the rack spacing.

Features

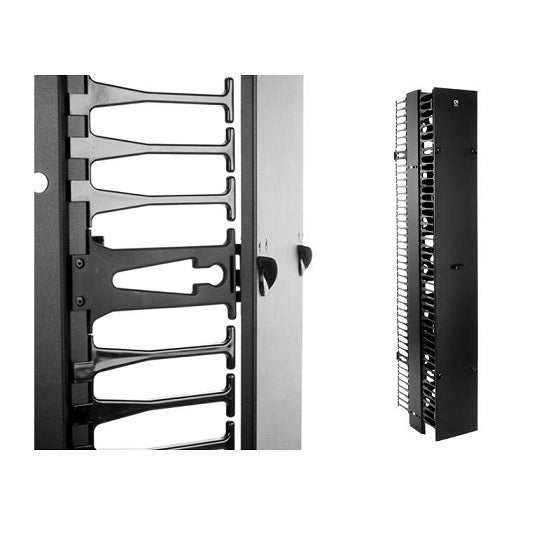

• Patented cable guide fingers at 1U intervals for easy management of patch cords.

• UL 94V-0 fire-rated composite materials for use in plenum areas.

• Sturdy, reversible aluminum Switch Gate Door/Cover with handle included.

• Four widths (4.4”, 6”, 10” or 12”), a variety of heights (5’6” through 9’), and single-sided (8.08”D or 10.62"D) or double-sided (16.15”D or 21.23”D) to suit your needs.

• Edge-protected pass-through ports and vertical slots to secure cable with optional saf-T-Grip straps on double-sided versions.

• Preassembled for easy installation and a more cohesive appearance.

• CPI’s most sturdy vertical cabling section for high-profile applications Also available in larger, higher capacity version called MCS-EFX Master Cabling Section with Extended Fingers​.
