Corning 024EC5-14100D53 24 Fiber OS2 Single Mode SST Ribbon Gel Free Armored Cable

Corning 024EC5-14100D53 24 Fiber OS2 Single Mode SST Ribbon Gel Free Armored Cable
Roll over image to Zoom

Corning 024EC5-14100D53 24 Fiber OS2 Single Mode SST Ribbon Gel Free Armored Cable

SKU: NNC23731X
corning-multi-fiber-os2-single-mode-sst-ribbon-gel-free-armored-cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
Regular price
$7.20
Sale price
$3.20 /FT 55% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

Description:

•

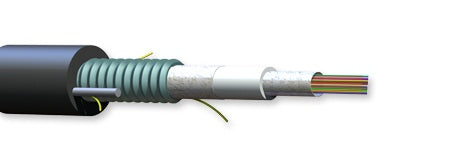

Corning SST-Ribbon™ cables represent a truly innovative breakthrough in outside plant cable technology. Providing up to 216 fibers in a compact design, the enhanced coupling features ensure the ribbon stack and cable act as one unit, providing long-term reliability in aerial, duct and direct-buried applications. These features also minimize ribbon movement in situations where cable vibration may occur. The cable consists of a single buffer tube containing a stack of up to 18 12-fiber ribbons wrapped within a water-swellable foam tape and surrounded by a second water-swellable tape. Steel strength members located 180 degrees apart under the cable jacket provide tensile and anti-buckling strength. Armored cables include a copolymer-coated corrugated steel tape armor layer. The cable is jacketed with a black UV-resistant polyethylene sheath. The 12-fiber ribbons have readily identifiable ribbon IDs and fiber colors and geometries that result in excellent mass-splicing yields.

Features And Benefits:

• Gel-free waterblocking technology
  - Craft-friendly cable preparation

• Innovative waterblocking technology
  - Prevents water penetration

• 12-fiber ribbons with ribbon IDs
  - Easy identification

• Up to 216 fibers in a compact design
  - Easily fits in 1.0 inch inner diameter duct

Standards:

• Common Installations: Outdoor lashed aerial and duct; indoor when installed according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-87-640, Telcordia GR-20, RDUP PE-90

Temperature Range:

• Storage: -40 °C to 70 °C (-40 °F to 158 °F )
• Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Operation: -40 °C to 70 °C (-40 °F to 158 °F )

Chemical Characteristics:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

Specification:

All-Dielectric NO
Armored YES
Cable Type RIBBON
Fiber Count 24
Fiber Type OS2 SINGLE-MODE
Rodent Protected NO
Self-Support NO

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
