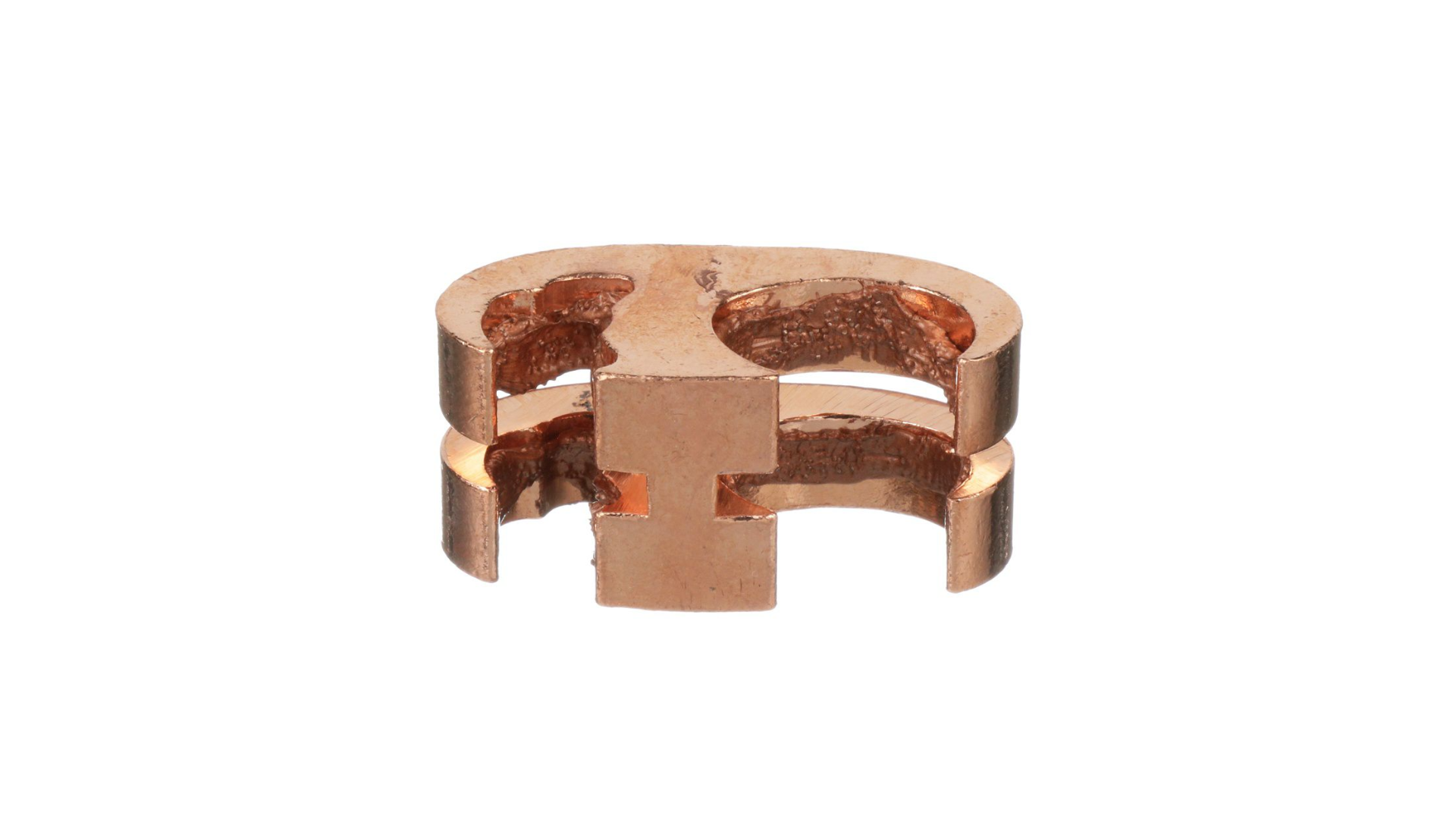

StructuredGround™ E-Tap, 250-250, Copper, 1/2-5/8" Grd Rod, 1/4-3/8" PANDUIT GCE250-250
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Sub Brand | StructuredGround™ |
| Connector Type | E-Style Connector |
| Length (In.) | 1 |
| Material | High Conductivity Copper |
| Width (In.) | 1.08 |
| Height (In.) | 2.66 |
| Maximum Copper Conductor Size (AWG STR) | 250 |
| Maximum Copper Conductor Size (kcmil) | 250 |
| Minimum Copper Conductor Size (AWG STR) | 1/0 |
| Maximum Ground Rod Size (In.) | 5/8 |
| Minimum Ground Rod Size (In.) | 1/2 |
| Maximum Rebar Size (In.) | 1/2 |
| Minimum Rebar Size (In.) | 3/8 |
| Panduit Die Index Number | PG25 |
| Color Code | Black |
| Standards Met | IEEE Std 837-2002, cULus listed, UL467, CSA 22.2 |
| Application | Utility/Ground Grid |
| Product Type | E-Tap Grounding Connectors |
StructuredGround™ E-Tap, 250-250, Copper, 1/2-5/8" Grd Rod, 1/4-3/8" PANDUIT GCE250-250
Description:
The GCE250-250 E Style Grounding Connector is designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014. Has a wide-range taking ability; the multi-conductor design provides flexibility with a minimum number of parts. The slotted design allows quick, easy assembly while the pre-applied conductive antioxidant compound ensures a high-quality mechanical and electrical bond. UL467 & CSA22.22 are certified for grounding, and bonding and are suitable for direct burial in earth or concrete.
