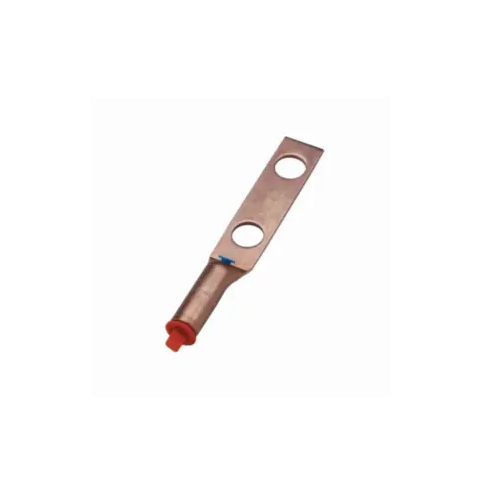

Grounding Copper Compression Connector Burndy YGA8C2N

Description :

• HYLUG™ Copper Compression Terminal for Grounding; 2-Hole; 1/2" Stud; 1-3/4" Spacing; Long Barrel; Accommodates: #8 AWG.

    Specifications :

    Color Code Red
    Connector Type Terminal
    Die Index 49
     Material Copper
    Physical Attribute - Number of Crimps Required 2
    Plated N
    Plating Type Unplated
    Trade Name HYLUG™
    Type Terminals
    UPC 781810102404
    Dimension - B Length fraction 7/9 in
    Dimension - B Length inch 0.78 in
    Dimension - Bolt Hole Size inch 0.52 in
    Dimension - Bolt Size inch 0.50 in
    Dimension - Hole Size inch 0.56 in
    Dimension - Hole Size mm 14 mm
    Dimension - L Length Overall mm 104 mm
    Dimension - Length Overall inch 4.09 in
    Dimension - N inch 0.62 in
    Dimension - Outside Diameter inch 0.27 in
    Dimension - Pad Width inch 0.83 in
    Dimension - Strip Length inch 7/8
    Dimension - Stud Size fraction 1/2
    Dimension - Stud Size inch 1/2
    Dimension - Width fraction 1/3 in
    Dimension - Width inch 0.31 in
    Conductor - Copper Str Size 8 AWG
    Conductor - Copper Str Size Range 8 AWG
    Conductor - Copper Str Size 8 Sol./8 Str.
    Conductor - Copper Str Size Range 8 Sol / 8 AWG
    Conductor Type

    • CU C Solid-Size
    • CU C Str-Size
    Certification - CSA Approved No
    Certification - ETL No
    Certification - UL Listed Direct Burial Yes
    Certification - UL Recognized No
    Certification - cULus No
    Industry Standard(s) UL467
    Standards - Industry Standards Met UL467
    Standards - RoHS Compliance Status CM
    UL Listed Yes
    Minimum Pack Quantity 100
