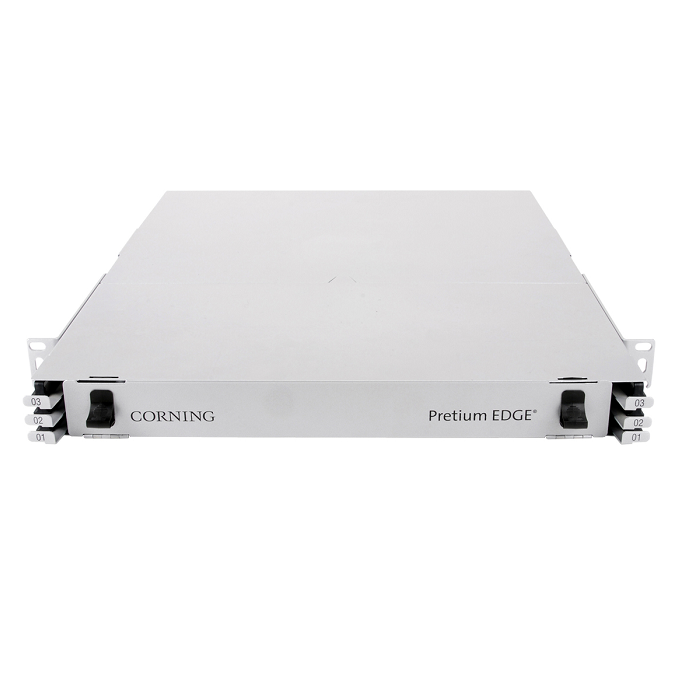

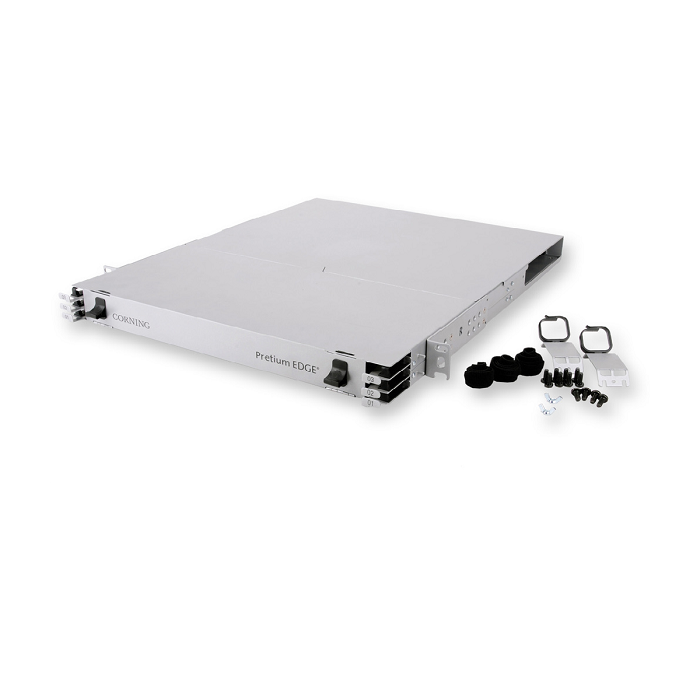

EDGE Housing 1 Rack unit holds up to Modules or Panel EDGE-01U-SP CORNING-C

EDGE Housing 1 Rack unit holds up to Modules or Panel EDGE-01U-SP CORNING-C
Roll over image to Zoom
EDGE Housing 1 Rack unit holds up to Modules or Panel EDGE-01U-SP CORNING-C
Roll over image to Zoom
EDGE Housing 1 Rack unit holds up to Modules or Panel EDGE-01U-SP CORNING-C
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: EDGE-01U-SP

Availability: In stock

Price:
$787.13
$787.13
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Quantity must be 1 or more

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Product Number EDGE-01U-SP
EAN Code 4056418144528
Access Type Front and rear access slidable
Lockable Yes, rear side
Mounting Type Rack Mount, Cabinet-mount
Product Type Fiber Optic Hardware
Application Data Center, Data Center LAN/SAN, Enterprise Networks
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Number of Modules 12
Cable entry type Side brush entry
Cable Entry Direction Rear
Housing Type EDGE™ HD
Number of Panels per Housing 12
Color Silver
Fiber Capacity 144
Height 44 mm (1.73 in)
Width 432 mm (17.01 in)
Depth 561 mm (22.09 in)
Weight 6.4 kg
Module Capacity 12
Units per Delivery 1/1


EDGE Housing 1 Rack unit holds up to Modules or Panel EDGE-01U-SP CORNING-C

Description

EDGE™ housings are high-density, preterminated fiber optic hardware solutions. They offer industry-leading connector density and easy finger/tool less access fastermoves, adds, and changes (MACs).The units can be configured to accommodate 96, 144, 288, or 576 fibers.EDGE housings can be rack- or cabinet-mounted and are ideal for data centers, local area network (LAN) and storage area network (SAN) applications, as well as enterprise networks.
