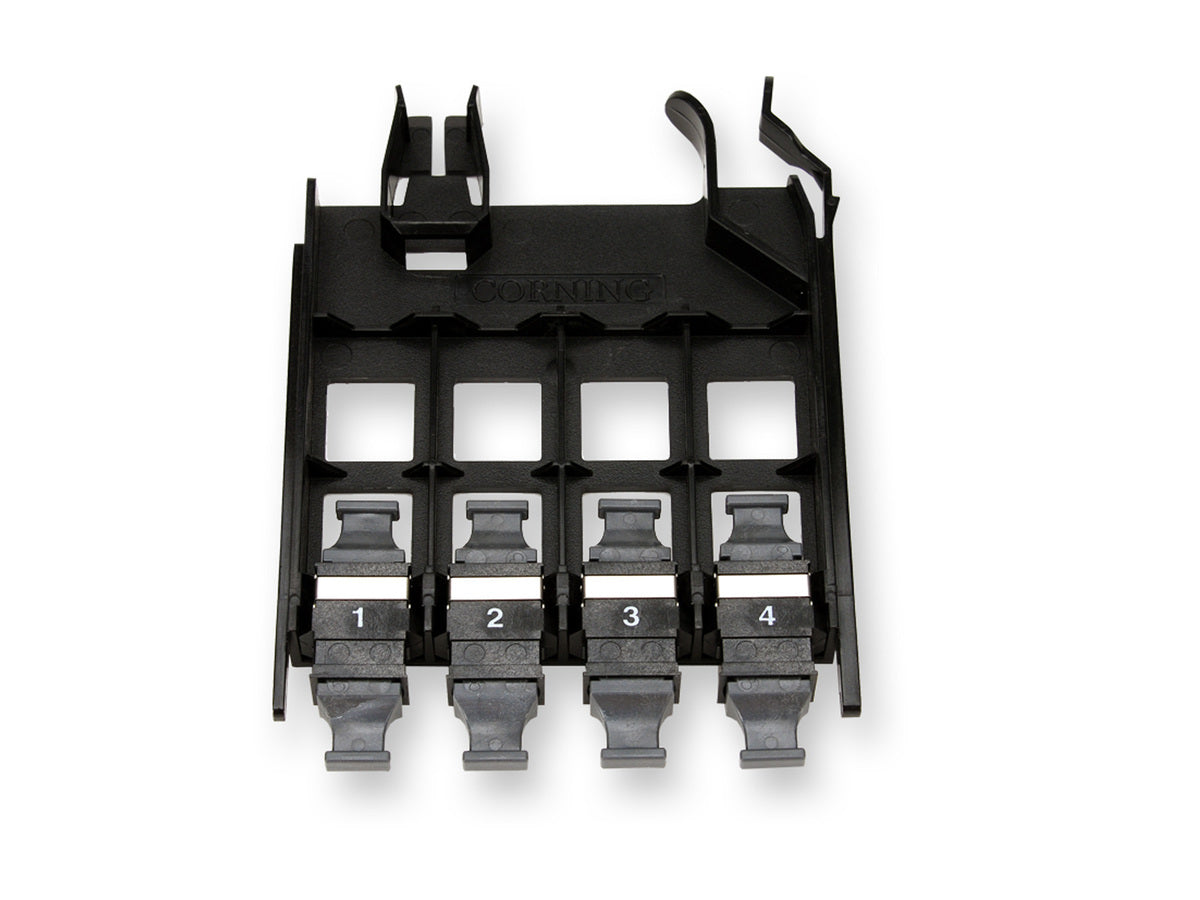

EDGE Adapter Panel MTP 48 F Bend-improved Single-mode (OS2) Corning EDGE-CP48-90
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Panels and Modules |
| Fiber Category | Single-mode (OS2) |
| Application | Data Center, Data Center LAN/SAN |
| Fiber Count | 48 |
| Number of Adapters per Panel | 4 |
| Housing Material | Composite |
| Adapter Type | MTP® |
| Adapter Style | Standard |
| Housing Color | Black |
| Part Number | EDGE-CP48-90 |
Dimensions
| Height | 200 mm (7.87 in) |
| Width | 250 mm (9.84 in) |
| Depth | 130 mm (5.12 in) |
Description:
EDGE™ MTP® adapter panels provide a simple interface to mate MTP Connectors. This occurs when connecting MTP trunks to MTP extended trunks, MTP trunks to trunk harnesses, and, in 40G multimode networks, connecting MTP trunks to 40G jumpers.
Features and Benefits:
Provide MTP connection points
Between trunks and harnesses or extender trunks
Installation
Can be installed or removed from the front or rear of a housing
Network upgrades
Facilitate simple upgrades to parallel optics
Packaging

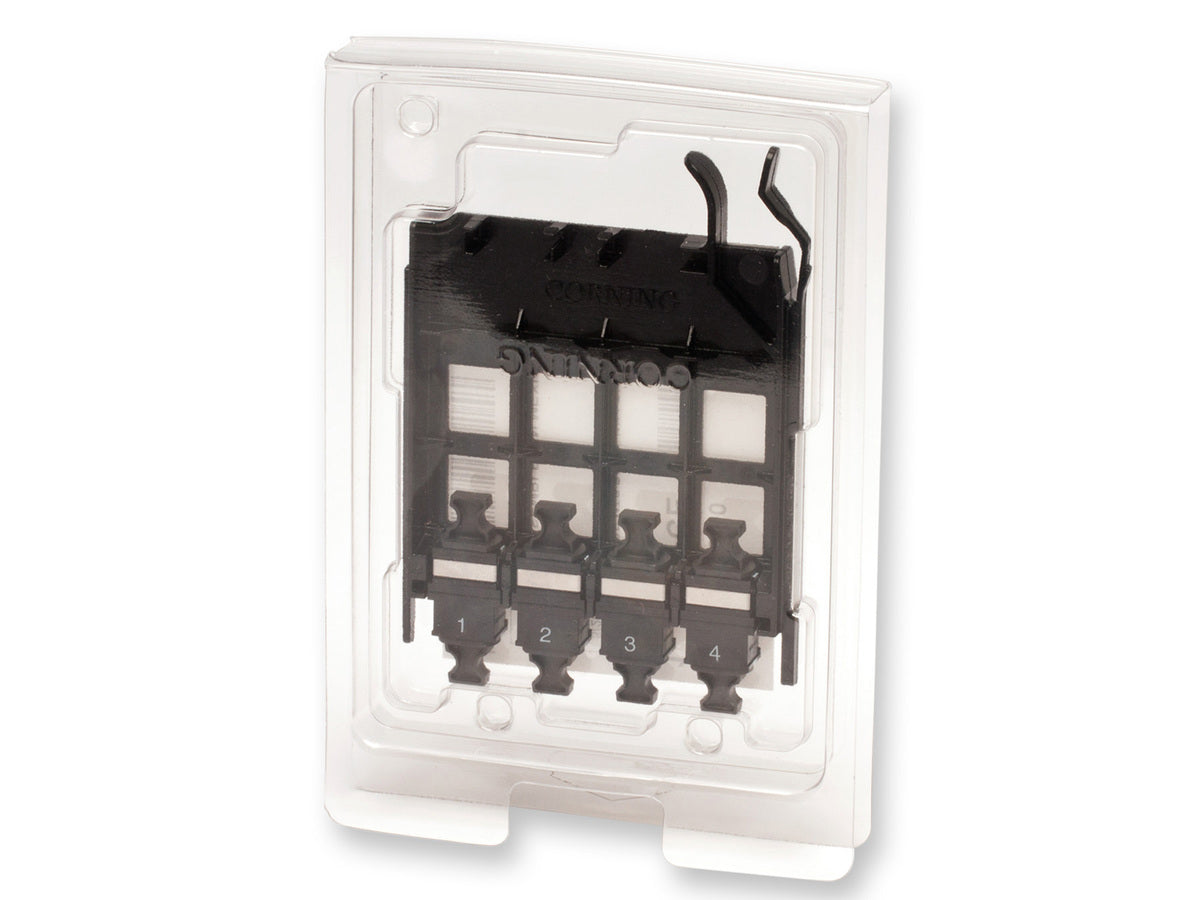

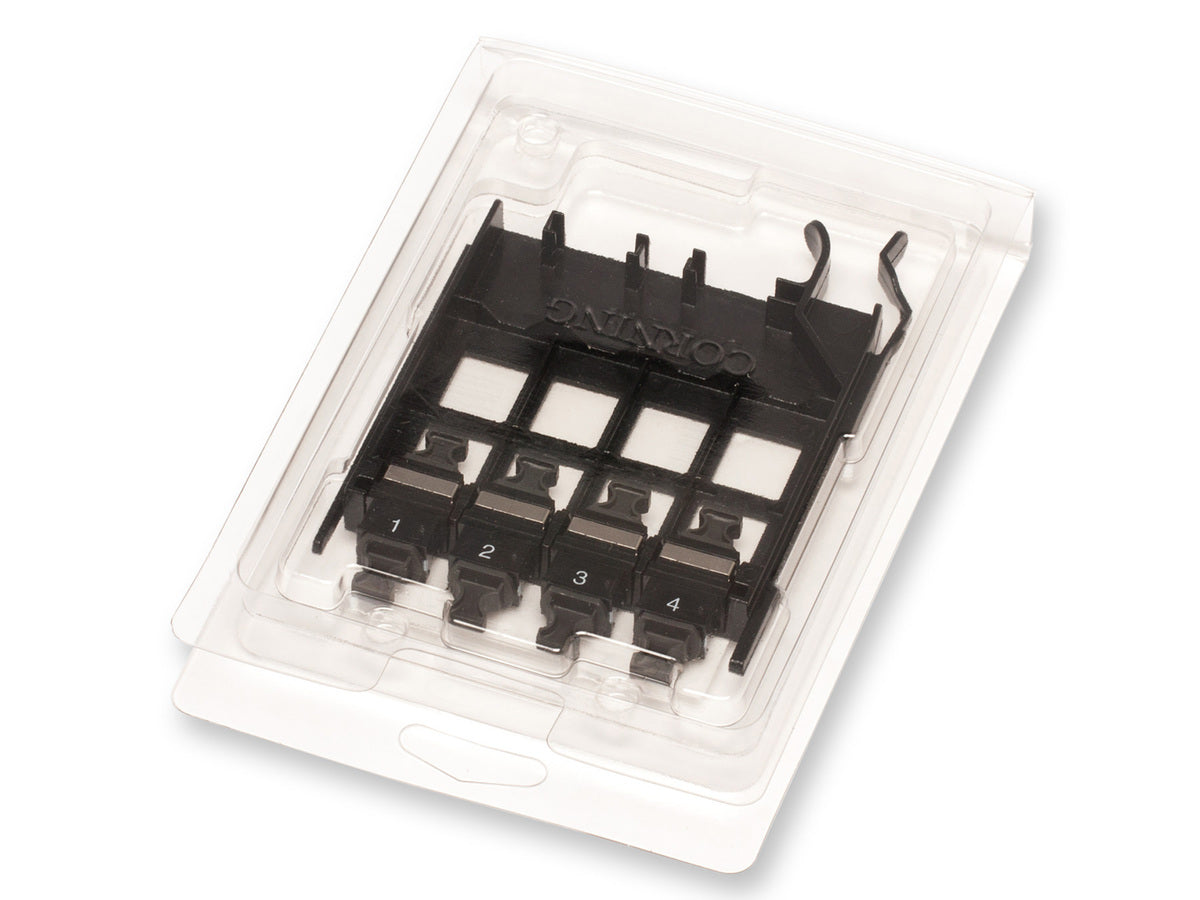

Packaged in easy-open containers.
Download PDF Spec Sheet
