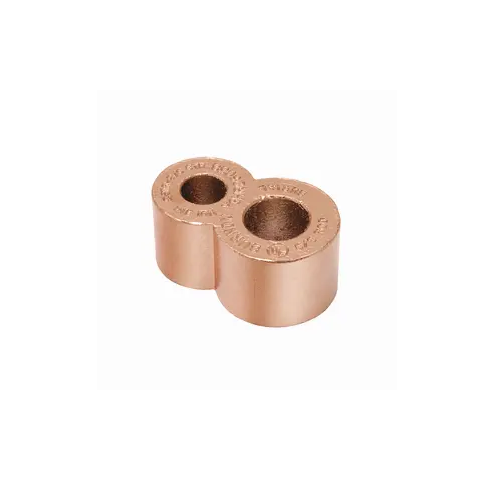

Copper HYTAIL™ Compression Ground Rod Connector Burndy YGHR26C58
Description :
• Copper Compression Connector, 2 AWG(Str)-2/0 AWG(Str), 5/8" Ground Rod.
• Features: High Torque Strength Ground Rod Connectors, Accommodates A Wide Range Of Copper Conductors To Ground Rod, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, PAT750 Tool, PU998 Die, (1), U1011 Die, (2), HYPRESS: Y45 Tool, PU998 Die With PT6515 Adapter, (1), S1012 Die, (2), Y46 Tool, PU998 Die With PUADP-1 Adapter, (1), P1011 Die, (2), Ground Rod Size: 5/8 IN, Conductor Type: Stranded Copper, Die Index: 998 Element A, Conductor Size (run - Range): 2 - 2/0 AWG, Shape: 8
Specifications :
| Application | For Direct Burial In Earth Or Concrete |
| Connector Type | Tap |
| Die Index | 998;1012 |
| EU RoHS Indicator | Yes |
| Material | Copper |
| Oxide Inhibitor Type | Penetrox E |
| Physical Attribute - Number of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Precrimp Die | UPRECRIMP58 |
| Prefilled Oxide Inhibitor | Y |
| Sub Brand | HYGROUND, HYTAIL |
| Trade Name | HYTAIL™ |
| Type | Taps |
| UPC | 781810220719 |
| Dimension - B Length fraction | 22/25 in |
| Dimension - B Length inch | 0.88 in |
| Dimension - Ground Rod Size | 5/8 |
| Dimension - Height fraction | 1-32/33 in |
| Dimension - Height inch | 1.97 in |
| Dimension - L Length Overall mm | 22 mm |
| Dimension - Length Overall inch | 0.88 in |
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Str Size Range | 2 AWG - 2/0 AWG |
| Conductor - Rod Size | 5/8 in |
| Conductor - Rod Size Range | 5/8 in |
| Conductor Type |
|
| Certification - CSA Approved | Yes |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) |
|
| Standards - Industry Standards Met | UL467;IEEE 837 |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
| Minimum Pack Quantity | 1 |
