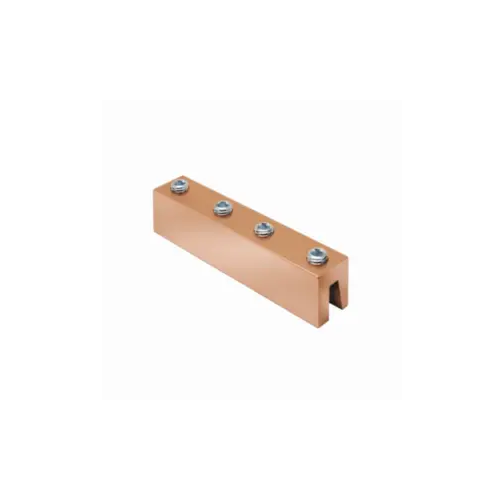

Copper Compression Groundlink Connectors Burndy YGIBS286752N
Description :
• GROUNDLINK™ Connector for Structural Steel Angled or Parallel Beam; Accommodates: #2 - 4/0 AWG; 3" Length; I-Beam Flange Thickness: 0.613" - 0.675".
• Features: An Irreversible Compression Ground Connection Which Allows Attachment To A Structural Steel Standard (Angled) Or Wide Flange (Parallel) Beam, Installed With A Required 5-Piece Die Set, Catalog PIBEAMKIT Or UIBEAMKIT, Die Index 1105, GROUNDLINK Connectors Are Made Of High-Conductivity Wrought Copper And Come Pre-Filled With PENETROX E Compound And Strip Sealed, Order Terminal Mounting Hardware Separately, I Beam Thickness Range: 0.563 - 0.625 IN, Mounting Hardware Order Separately: TMHG-42, Suggested Compression Terminal: YGHA2C-2N, YGHA25-2N, Length: 3 IN, Terminal Pad Thickness: 0.19 - 0.26 IN, I Beam Style: Standard Beam (Flange Angled), Die Index: 1105 Element A
Specifications :
| Application | For Direct Burial Cables |
| Connector Type | Tap |
| EU RoHS Indicator | Yes |
| I Beam Style | Standard Beam (Flange Angled) |
| Material | Copper |
| Physical Attribute - Number of Tapped Holes | 2 |
| Plated | N |
| Plating Type | Unplated |
| Sub Brand | HYGROUND, GROUNDLINK |
| Trade Name | GROUNDLINK™ |
| Type | Taps |
| UPC | 781810039342 |
| Dimension - B Length fraction | 3 in |
| Dimension - B Length inch | 3.00 in |
| Dimension - I Beam Thickness Range inch | 0.563;0.600;0.625;0.575 |
| Dimension - I Beam Thickness inch | 0.613" - 0.675" |
| Dimension - L Length Overall mm | 76 mm |
| Dimension - Length Overall inch | 3.00 in |
| Conductor - Copper Str Size | 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Str Size Range | 2 AWG-4/0 AWG |
| Conductor Type |
CU C Str-Size |
| Certification - CSA Approved | Yes |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Certification - cULus | No |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
| Minimum Pack Quantity | 1 |
